Connections & Spares for 1″ Dry-Shut™

Connections & Spares for 1″ Dry-Shut™ groups the standard CPP® fittings and genuine service items used with the 1″ Dry-Shut™ coupling system.

All of the short male connection fittings in this collection use a 1″ BSPP male parallel thread to ISO 228-1 with an O-ring sealing arrangement. The O-rings on the short BSPP male connection are PP Olefin Elastomer.

These connection products remain part of their normal CPP® product ranges and are all CPP® branded fittings. They are listed here because their 1″ BSPP short male / O-ring connection can be used with the 1″ BSPP female rear port on the Dry-Shut™ coupling.

IBC Converters

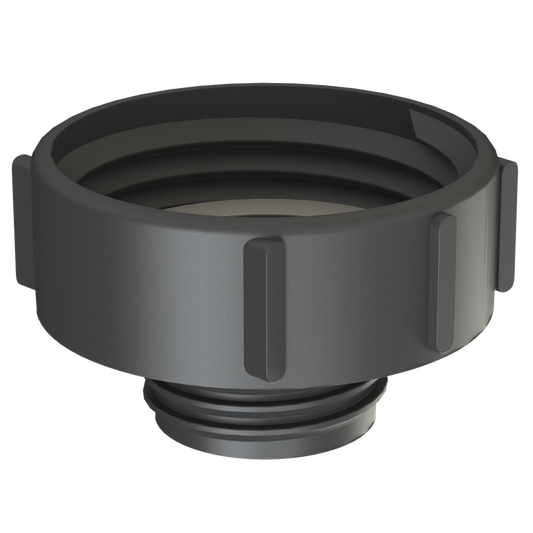

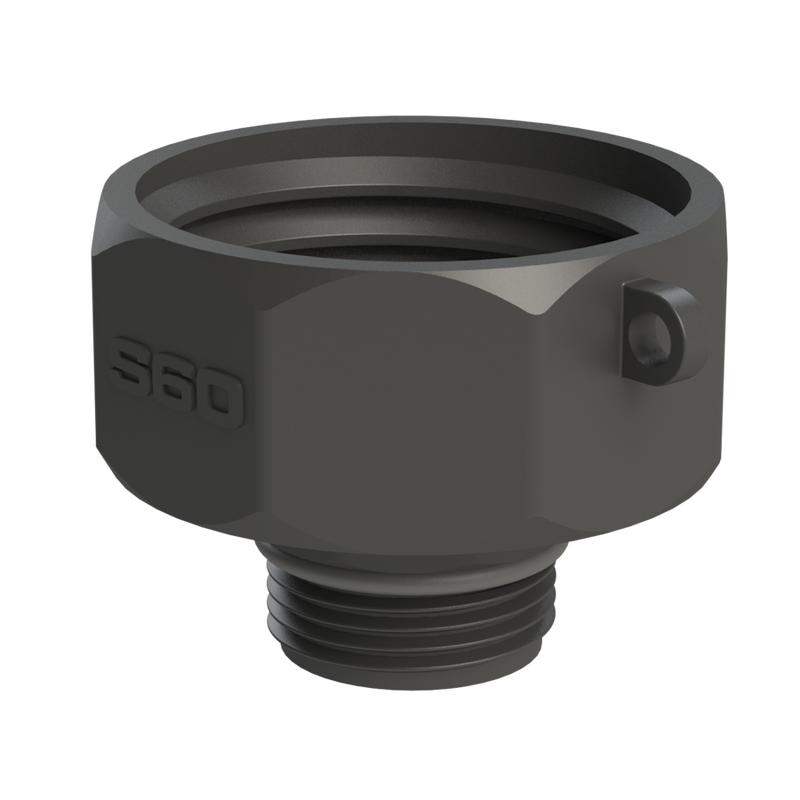

• S60X6 female IBC × 1″ BSPP short male / O-ring
• 2″ NPS female Easy-Seal × 1″ BSPP short male / O-ring

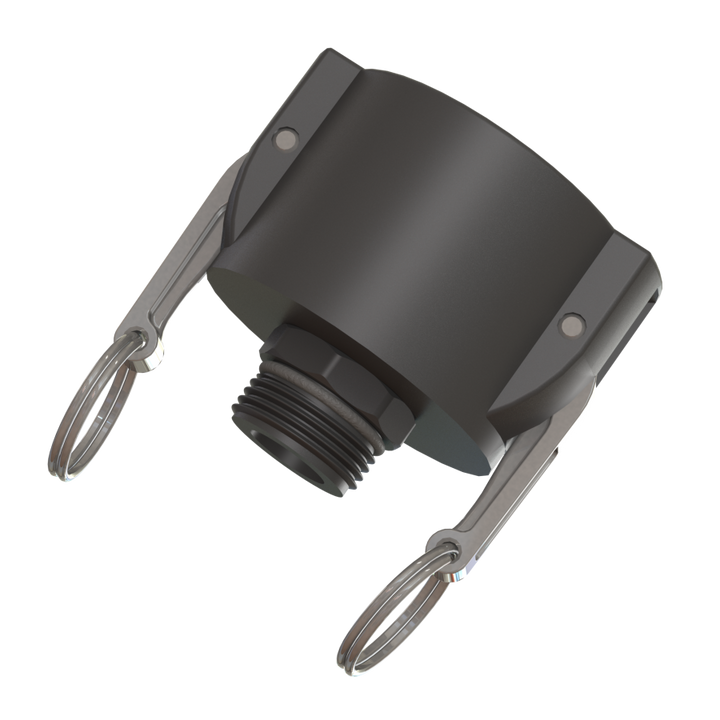

• 2″ female Camlock × 1″ BSPP short male / O-ring

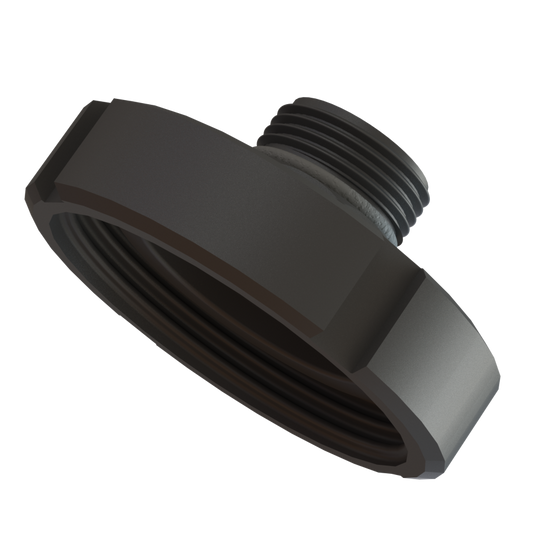

• RD78 female (DIN 11851, DN50) × 1″ BSPP short male / O-ring
• S60X6 female hex version × 1″ BSPP short male / O-ring

Connection Fittings

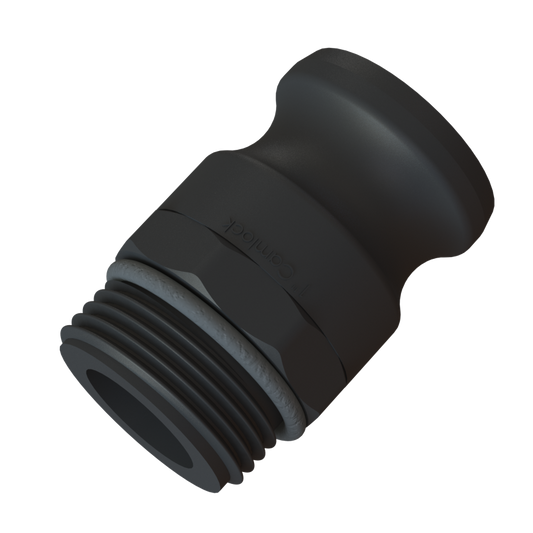

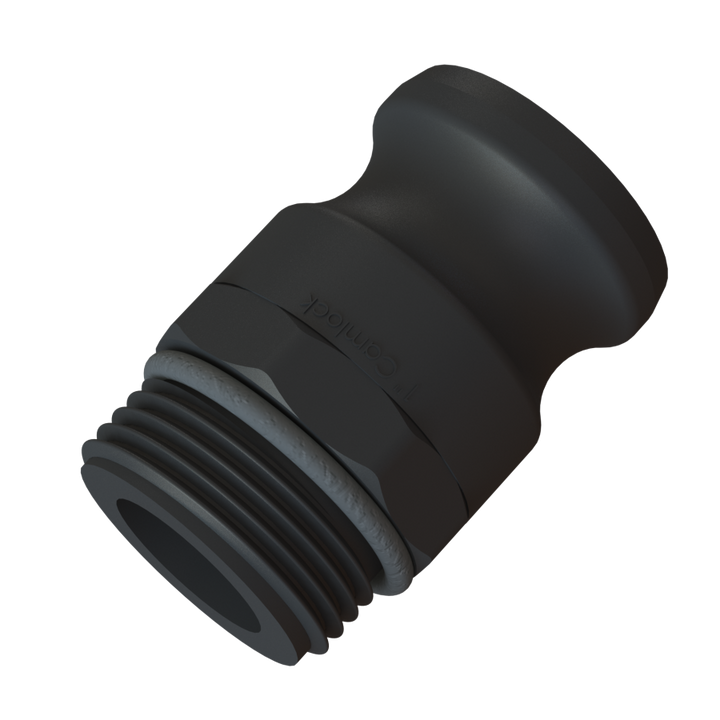

• 1″ male Camlock Part FS × 1″ BSPP short male / O-ring

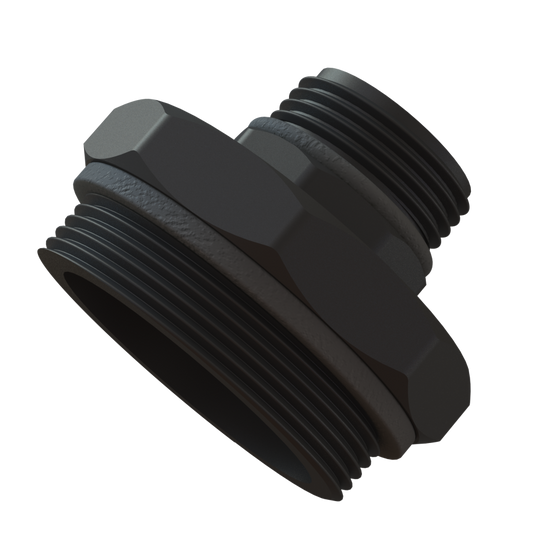

• BCS G2 × 11.5 drum / container thread × 1″ BSPP short male / O-ring

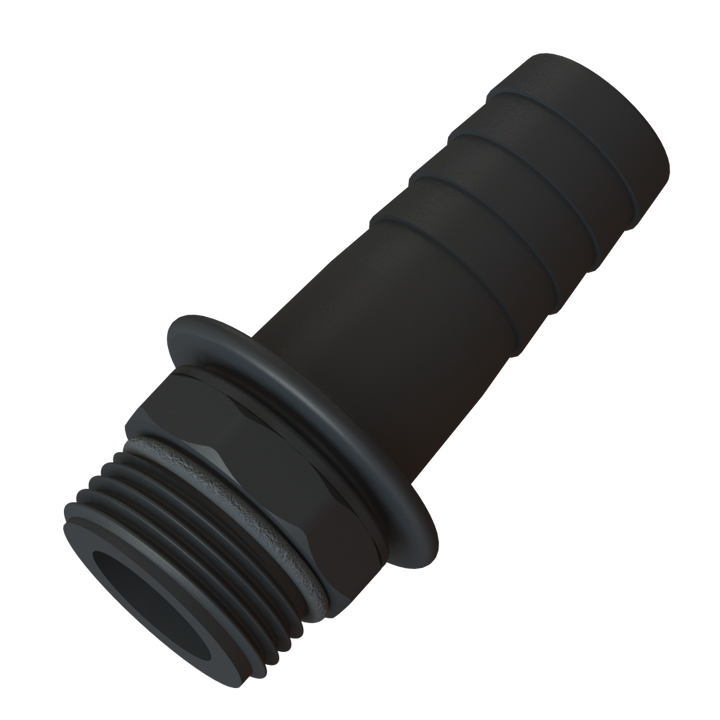

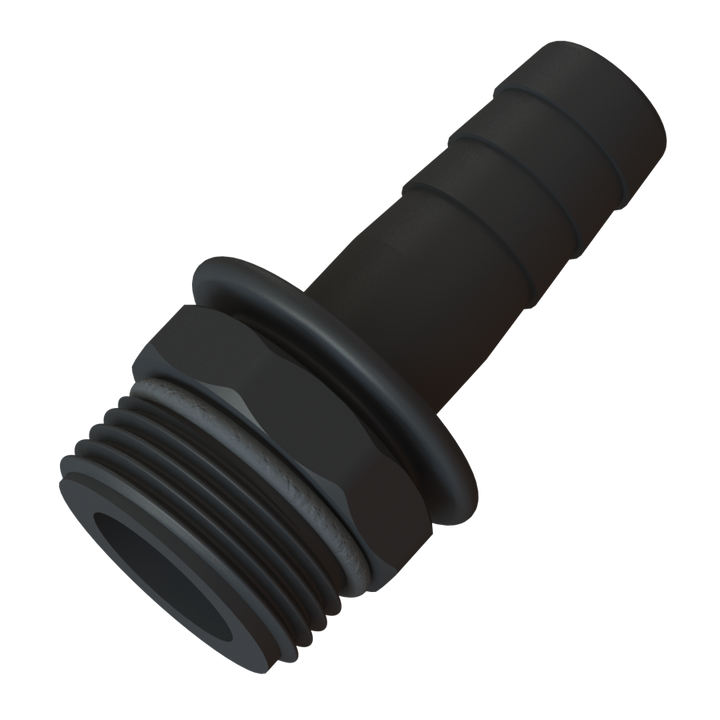

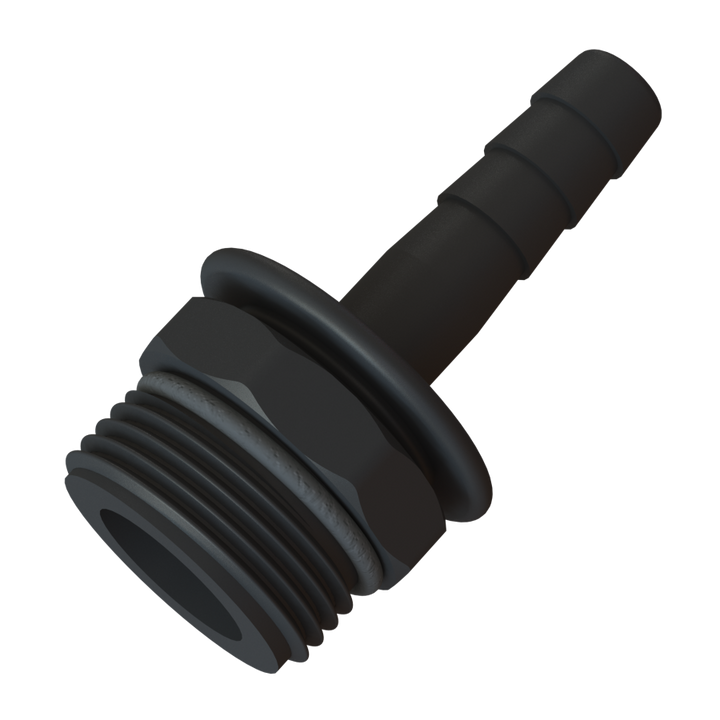

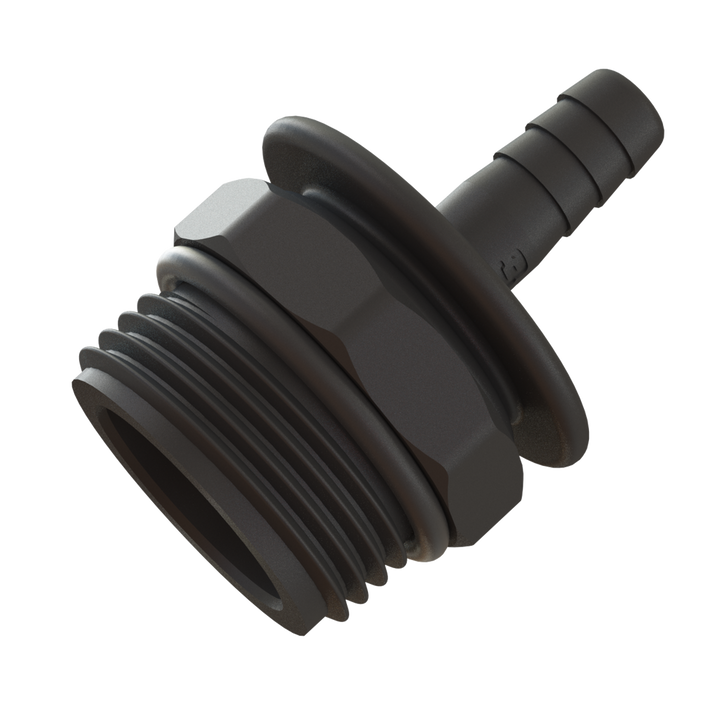

• 25 mm, 19 mm, 13 mm and 10 mm hose tails

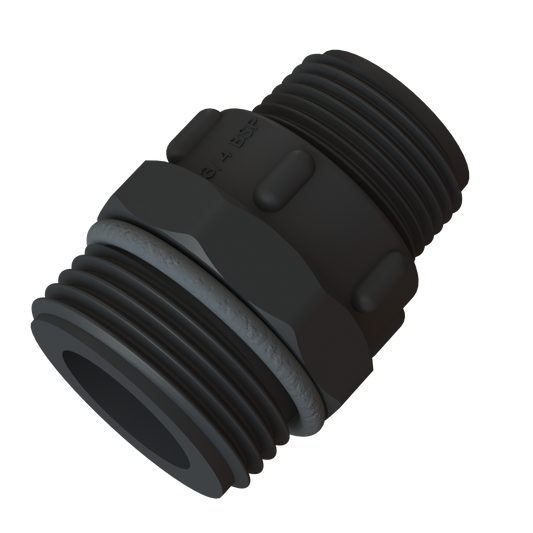

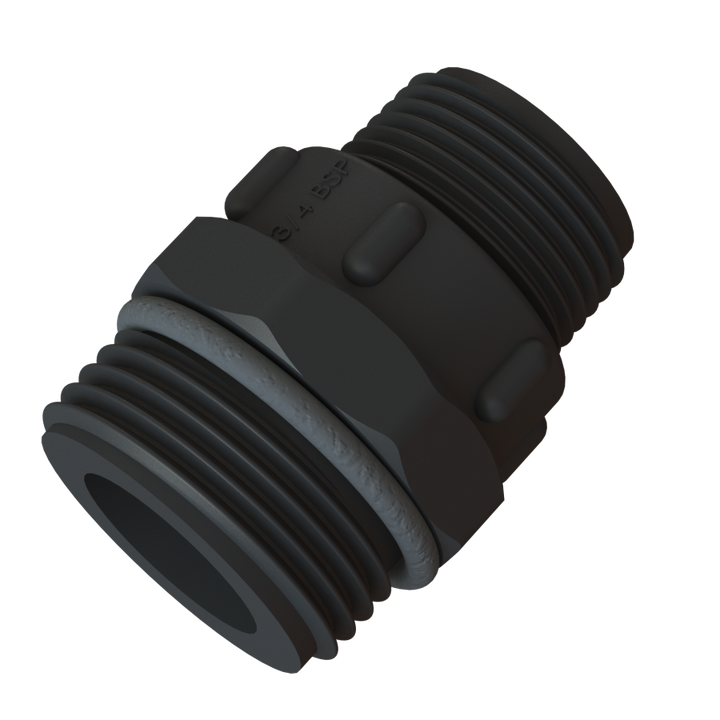

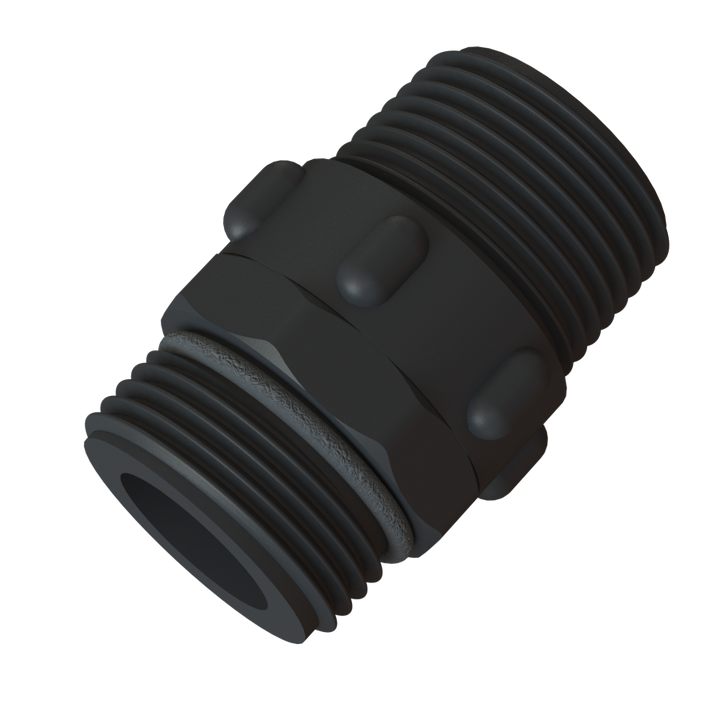

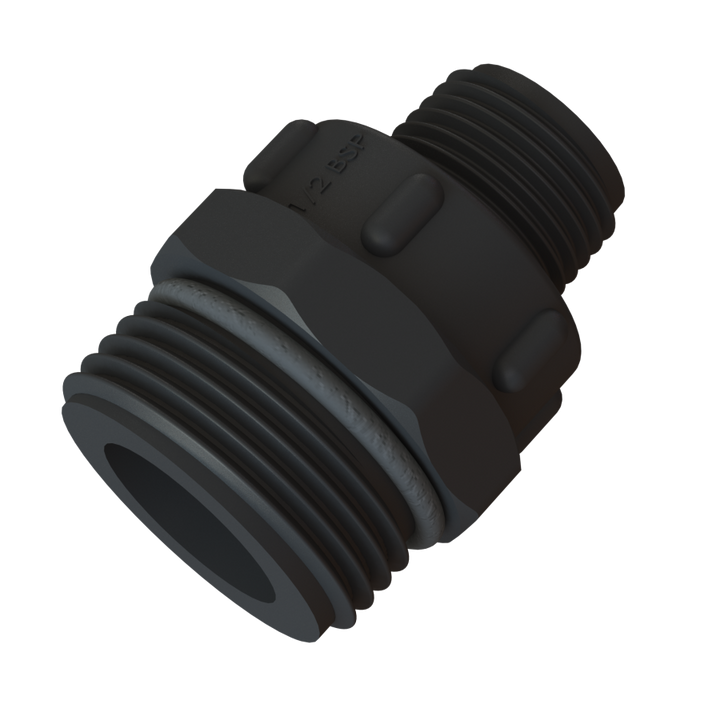

• 1″, ¾″ and ½″ BSPT male threads

Spares & Tools

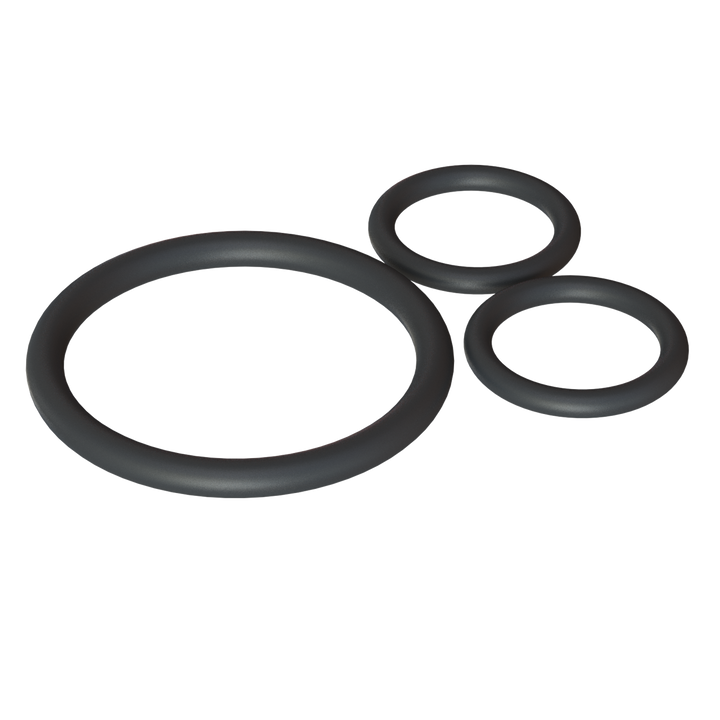

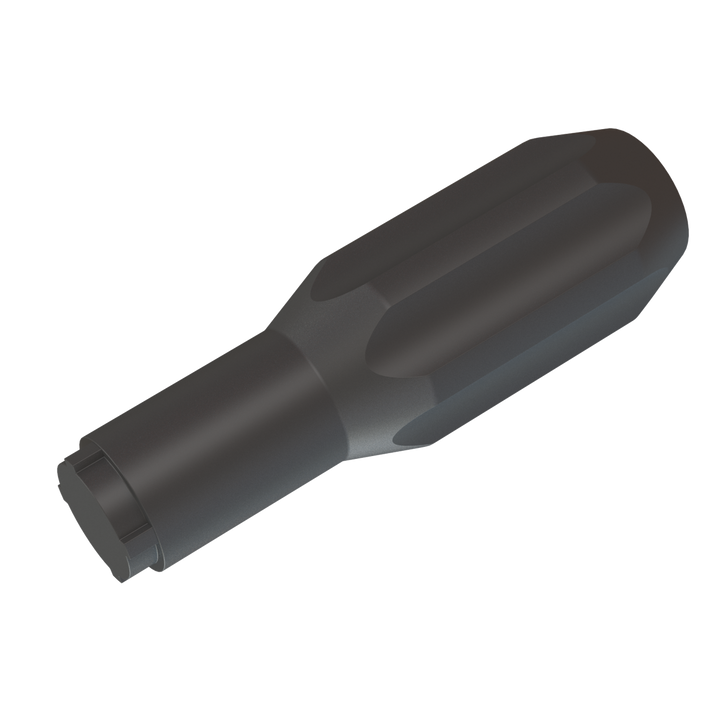

Dry-Shut™-specific service items including EPDM and Viton® seal kits and the 1″ poppet removal tool.

The standard connection fittings themselves are not separate Dry-Shut™ valved couplings; they are CPP® fittings selected from the wider CPP range to connect the Dry-Shut™ system to other equipment.
