2″ Female Camlock Swivel Couplings

CPP® 2″ Female Camlock Swivel Couplings connect a matching 2″ male Camlock adaptor to a hose or threaded connection. Choose the outlet size and connection required for your liquid-transfer equipment, tanks, hoses or pipework.

Useful where space is restricted: The swivel design helps position the connected hose or fitting where clearance around an IBC outlet is limited.

Manufactured from glass-filled polypropylene, these swivel couplings use a PP Olefin Elastomer gasket. Their working pressure is 60 psi (approximately 4.1 bar) at 20°C.

Choose your connection

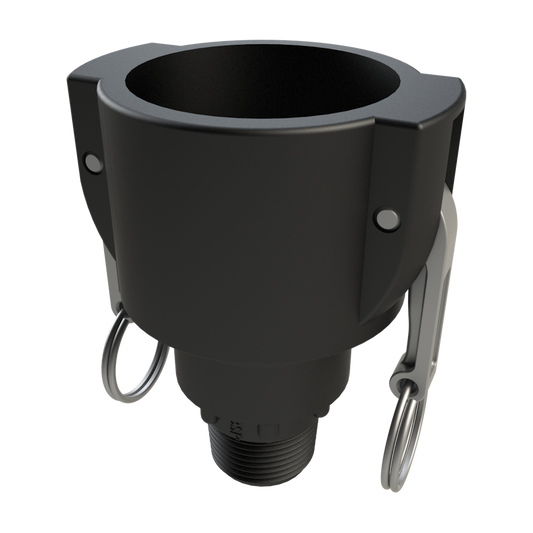

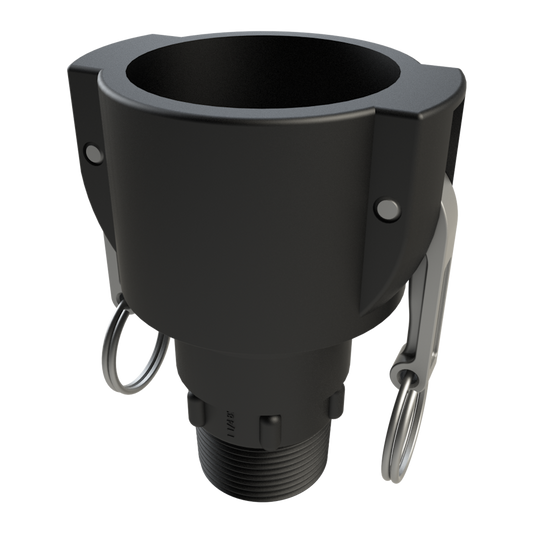

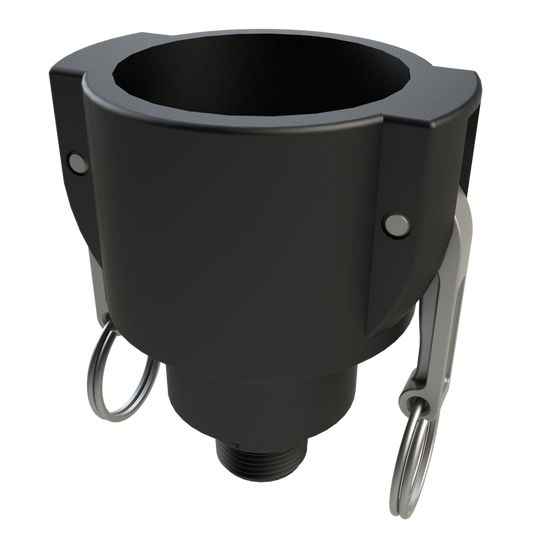

• Type SB (Part SB): 2″ female Camlock swivel × male thread. Options include BSPT, NPT and ¾″–11.5 NHR US garden-hose thread.

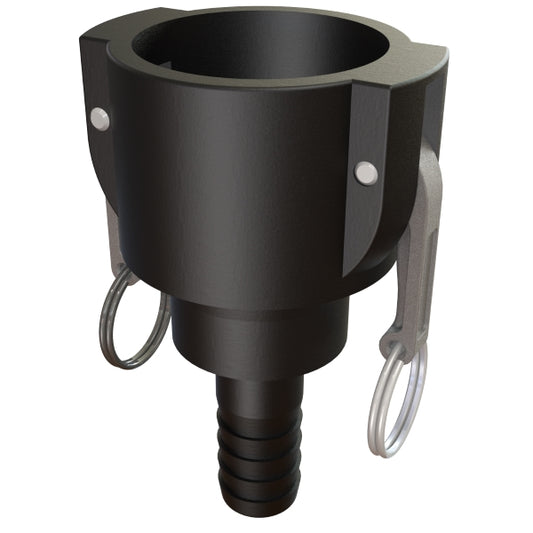

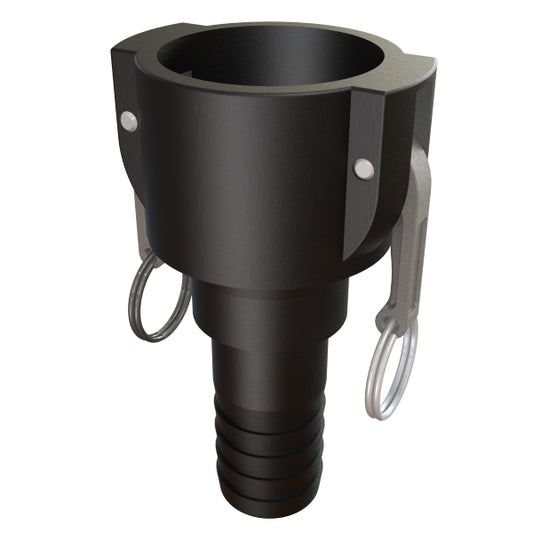

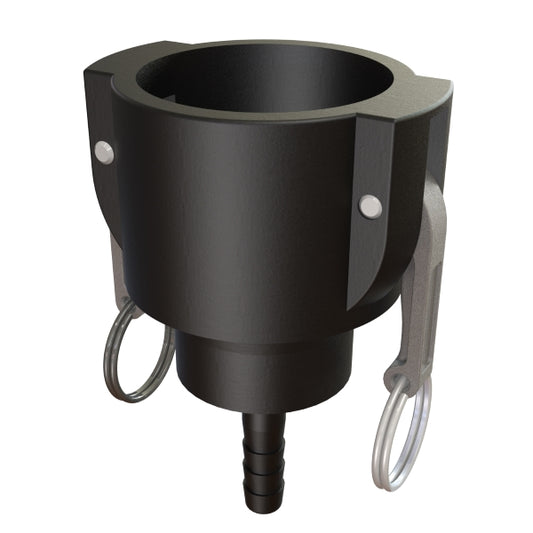

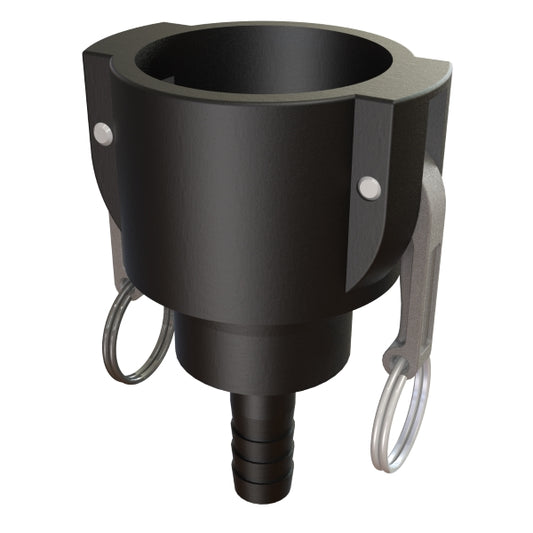

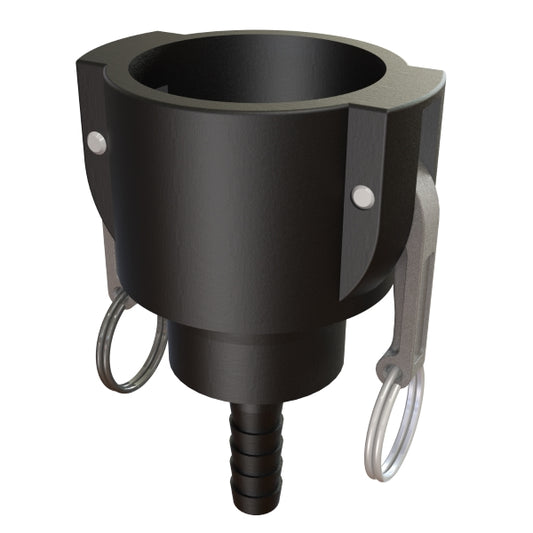

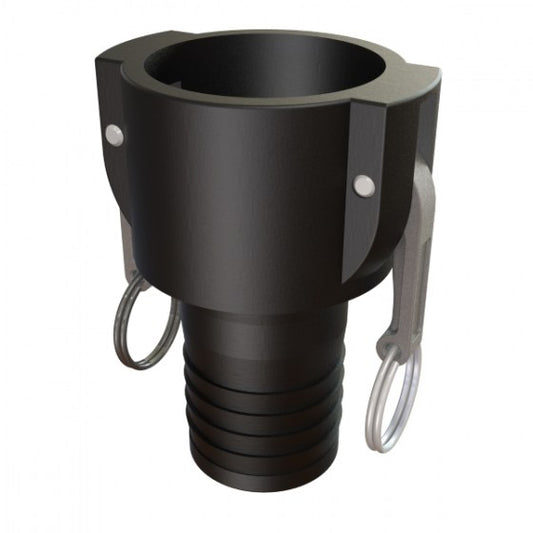

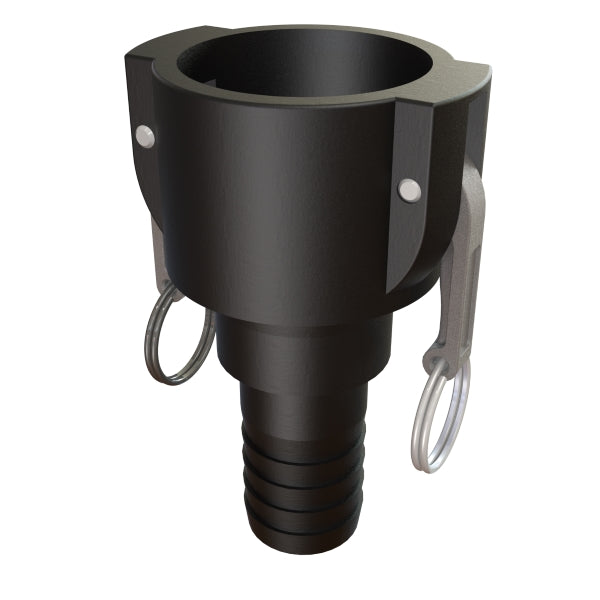

• Type SC (Part SC): 2″ female Camlock swivel × hose tail, with listed hose sizes from ½″ (13 mm) to 2″ (50 mm).

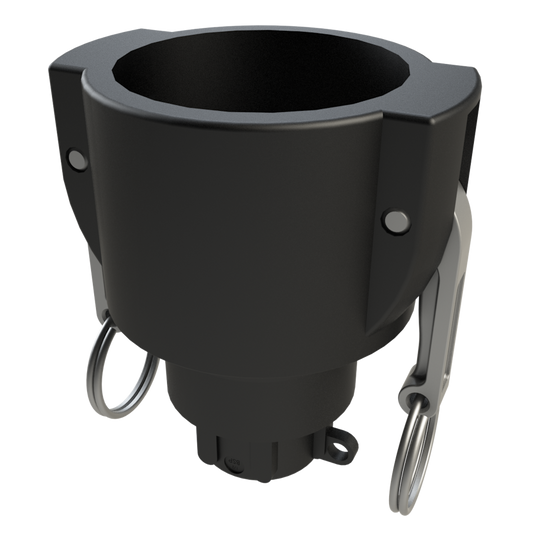

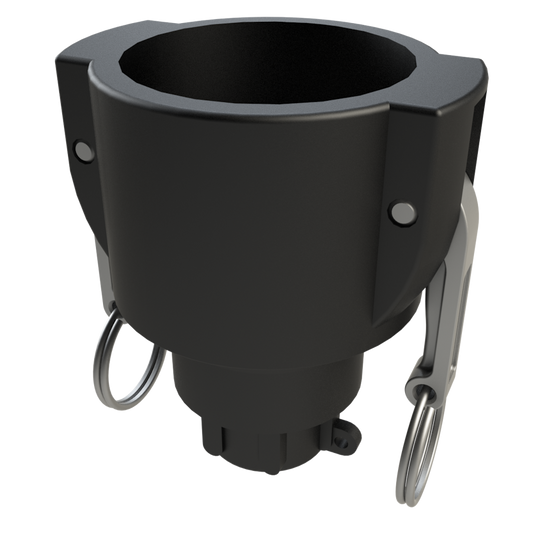

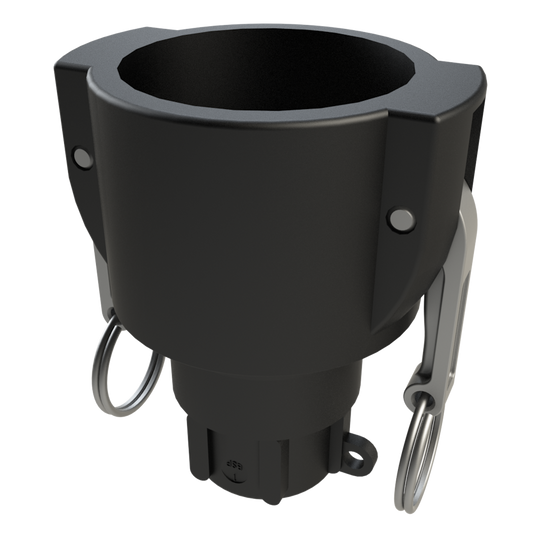

• Type SD (Part SD): 2″ female Camlock swivel × female thread, with BSPP and NPT options.

Camlock compatibility: Fits matching 2″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326.

Thread standards and sizing

• BSP male: BSPT tapered external thread to ISO 7-1, designation R.
• BSP female: BSPP parallel internal thread to ISO 228-1, designation G.
• NPT: Tapered male or female pipe thread to ASME B1.20.1, where listed.

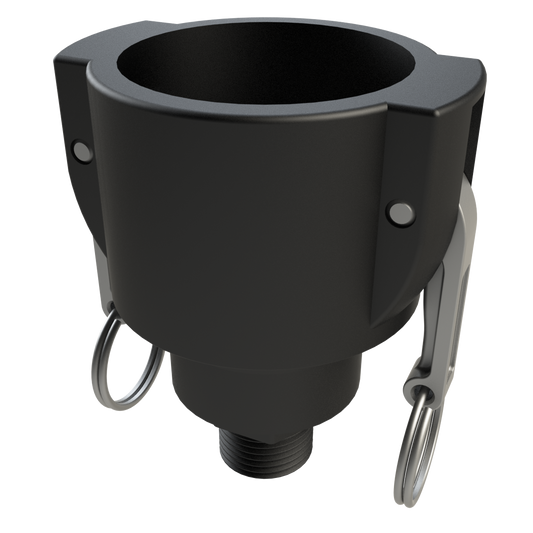

• NHR garden hose: ¾″–11.5 NHR male thread, with 11.5 threads per inch; select a matching US garden-hose connector.

All products in this range have a 2″ female Camlock head. The hose or threaded outlet can be a different size. Check both ends and the individual product specification before ordering. BSP, NPT and garden-hose connections use different thread standards.

Working pressure and use

60 psi at 20°C. Check suitability with CPP® for other operating temperatures. The complete installation is limited by its lowest-rated component. Check compatibility of the body and gasket with the liquid, fit suitable hose clamps or thread seals, and avoid overtightening plastic threads. Support hoses and pipework and depressurise before disconnecting the assembly.

Technical guides

• Check your connection size: CPP® Camlock size chart
• Check material suitability: CPP® chemical resistance guide
• Read the CPP® Material Application Statement
