IBC Ball Valves

CPP® DARCIE-LITE IBC ball valves are designed as replacement outlet valves for compatible IBC tanks.

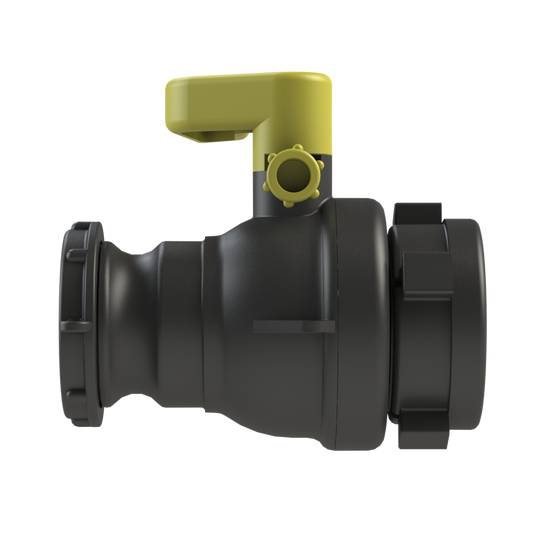

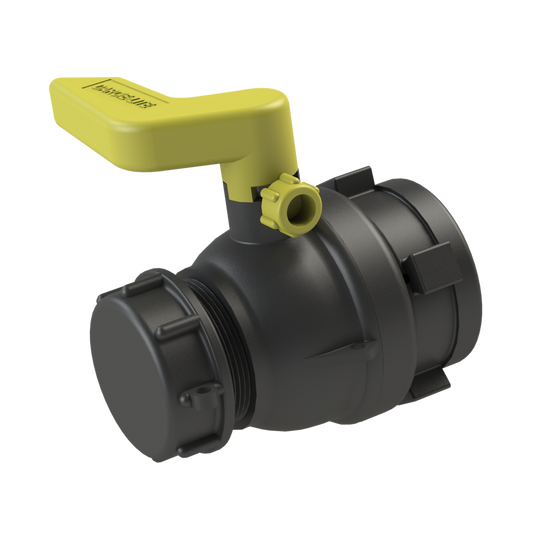

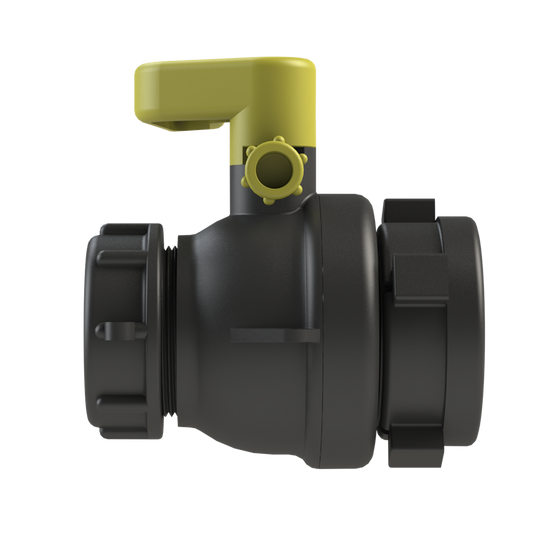

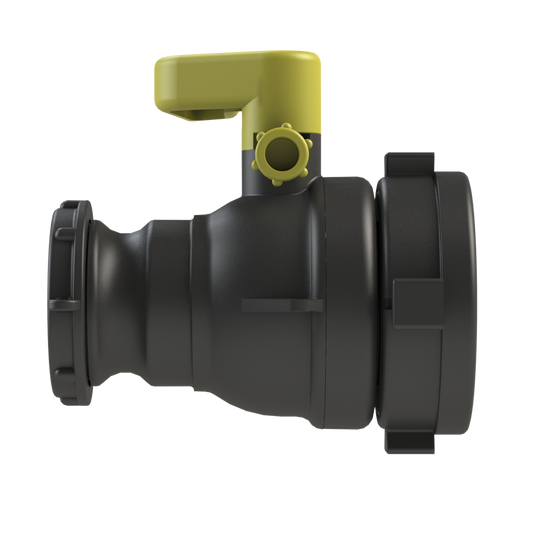

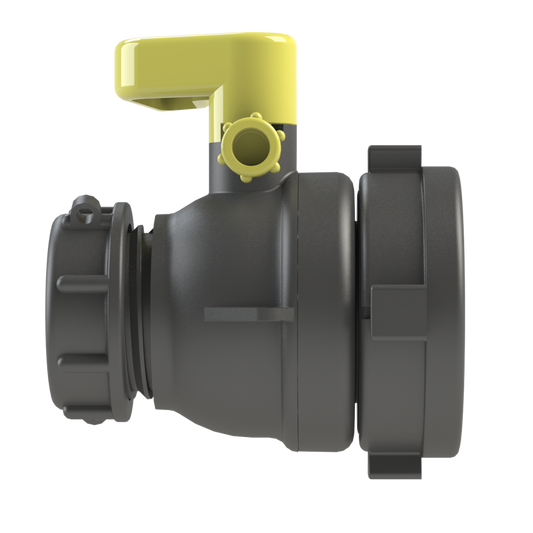

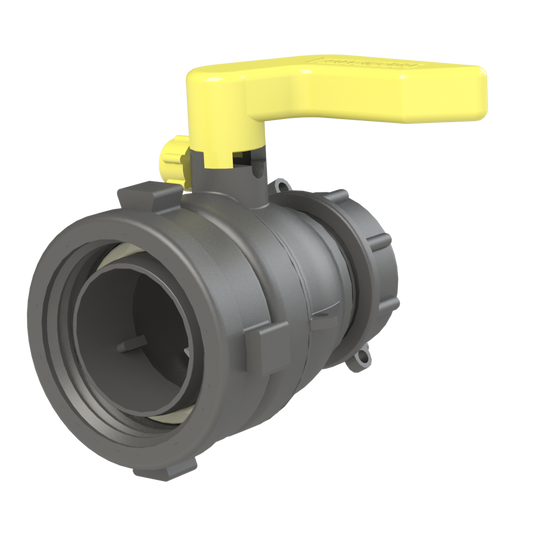

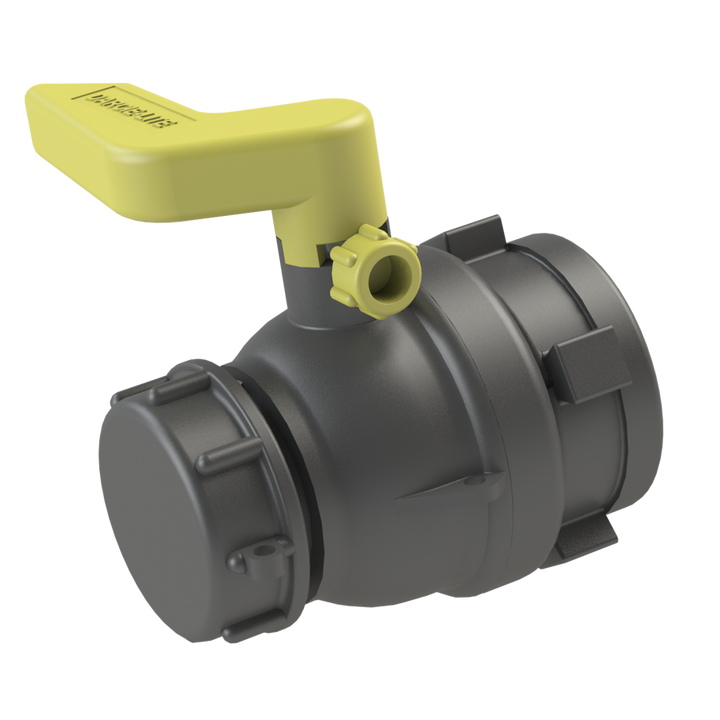

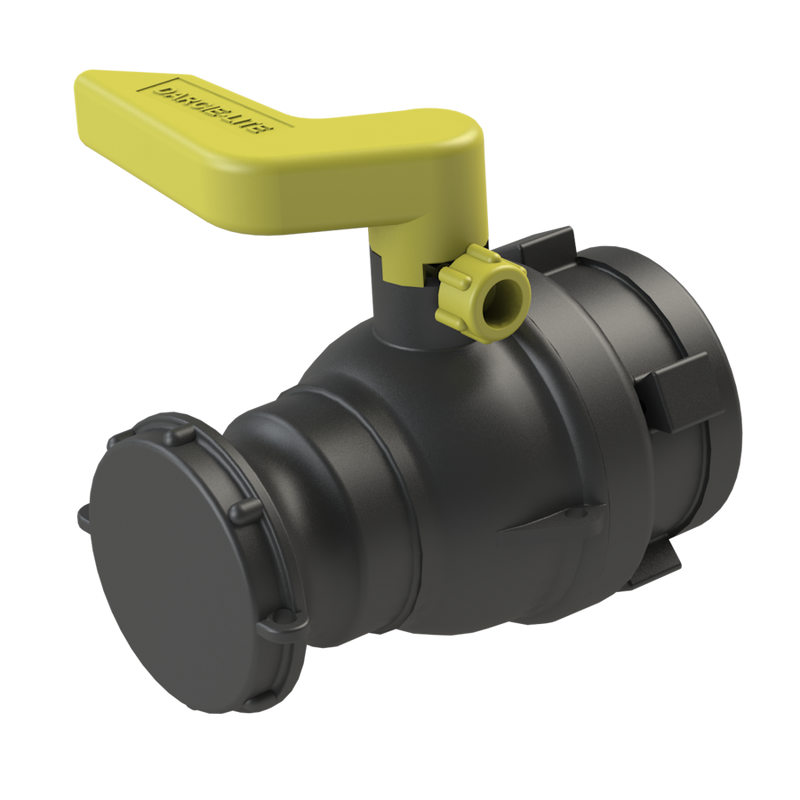

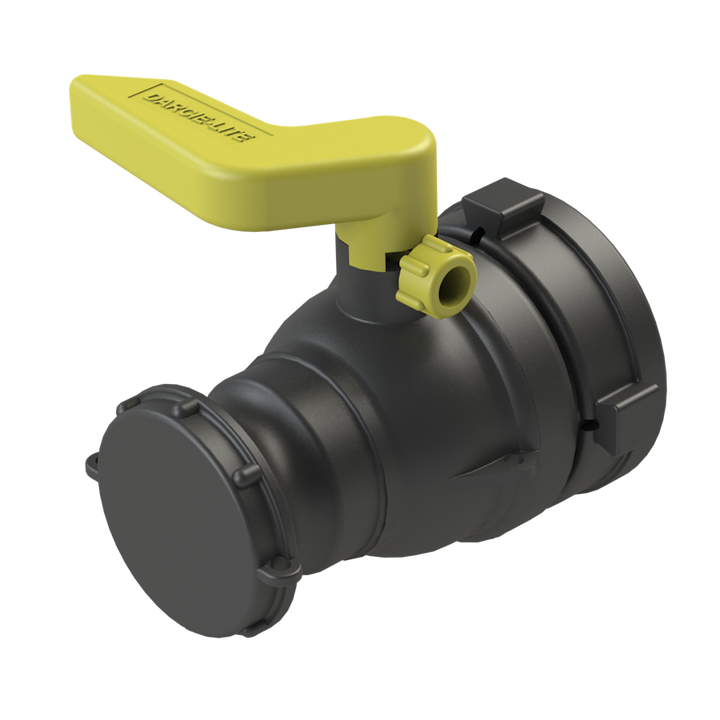

The range includes valves with S60X6, S75X6 and selected other female tank-neck connections, with outlet options including 2″ Camlock, 2″ NPS straight male thread and S60X6 male connections. DARCIE-LITE valves in this range use black glass-filled polypropylene bodies with yellow operating handles.

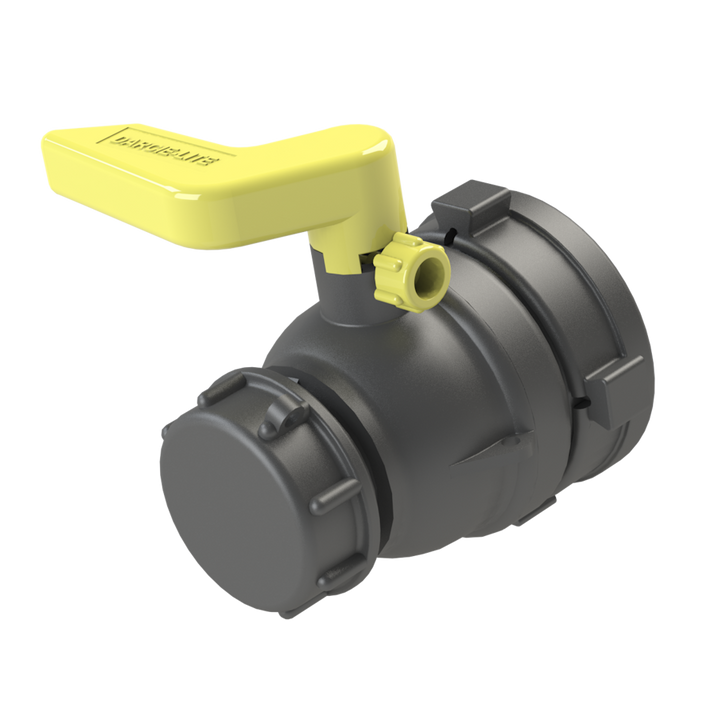

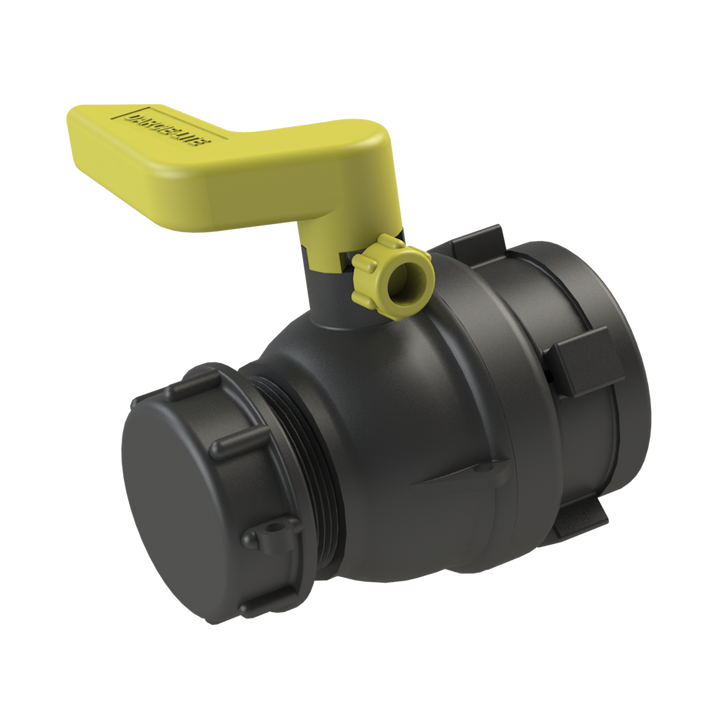

2″ NPS threaded outlet: straight/parallel 60° pipe thread, 11.5 TPI, using the ASME B1.20.1 thread form. A matching 2″ NPS female connection can be used directly. A 2″ NPT female thread can also be fitted to the 2″ NPS male; use suitable PTFE thread tape or an appropriate thread sealant, confirm adequate engagement and leak-test before service.

IBC tank compatibility

Replacement-valve compatibility is determined by the thread on the IBC bottle/tank neck, not just the thread visible on the old valve outlet. As a guide:

• S60X6 tank neck: commonly found on selected MAUSER / former MAMOR, Sotralentz and MaschioPack IBCs.
• S75X6 tank neck: commonly found on selected SCHÜTZ, Greif / Fustiplast and Clawson IBCs.
• S80X6 tank neck: used on selected MAUSER (Hoover) Repaltainer / TC1000 tanks.

IBC manufacturers use more than one valve connection across different models and production periods, so always check the tank-neck diameter and pitch after removing the old valve before ordering. If uncertain, send CPP a clear photograph and measurements through Ask CPP Technical Support.

For identifying outlet connections, use our IBC outlet identification guide. For material guidance, see our chemical resistance guide.
