1½″ BSPP Hex Male × 1½″ (38 mm) Hose Tail - GF Polypropylene - CPP®

1½″ BSPP Hex Male × 1½″ (38 mm) Hose Tail - GF Polypropylene - CPP®

HMB15T027

£4.10 GBP ex VAT
£4.93 GBP
£0.00 GBP £4.93 GBP
inc VAT
Sale Awaiting stock
Taxes included. Shipping calculated at checkout.

In stock

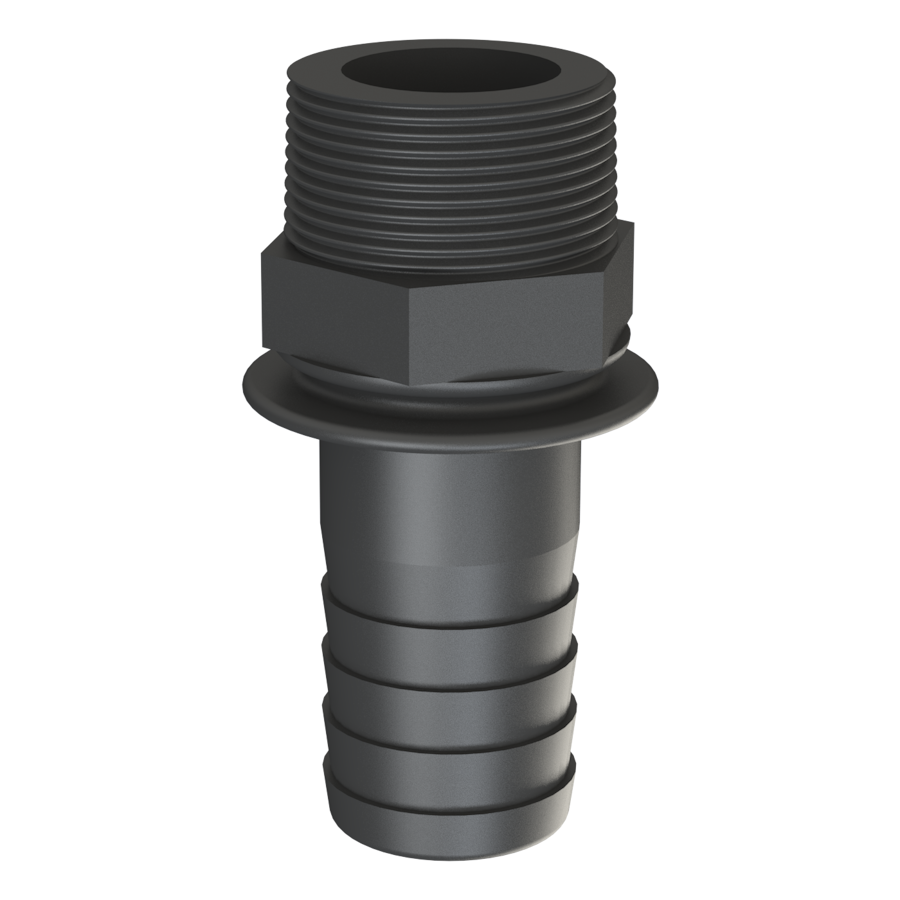

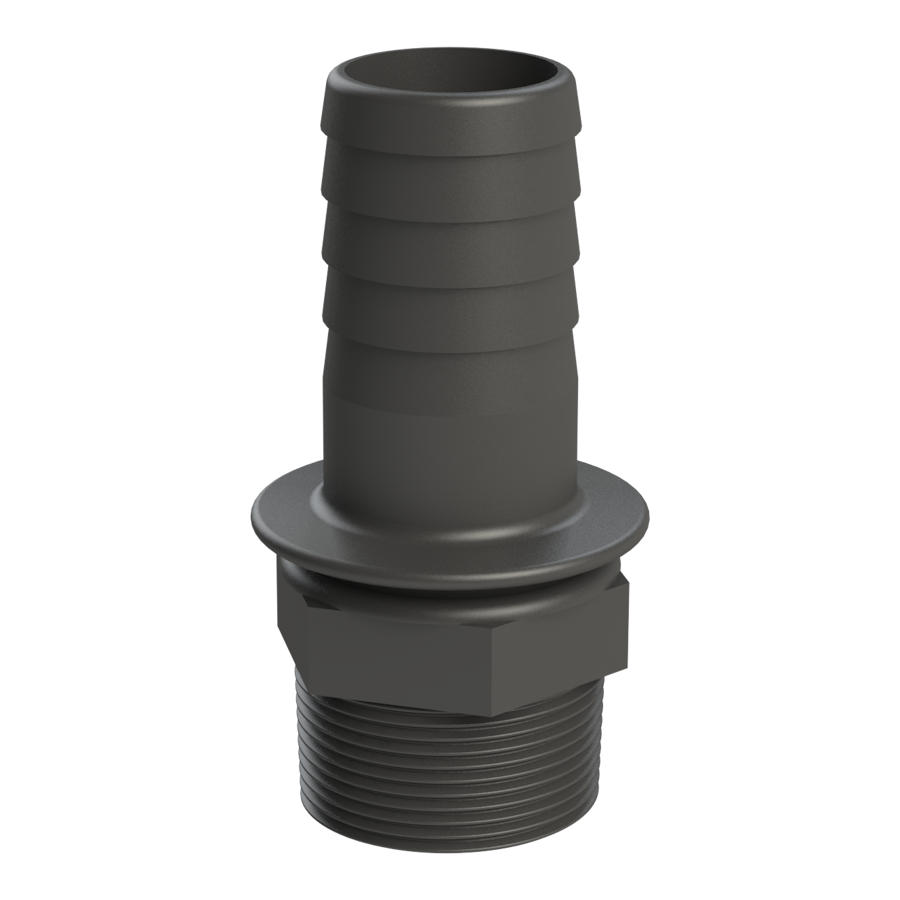

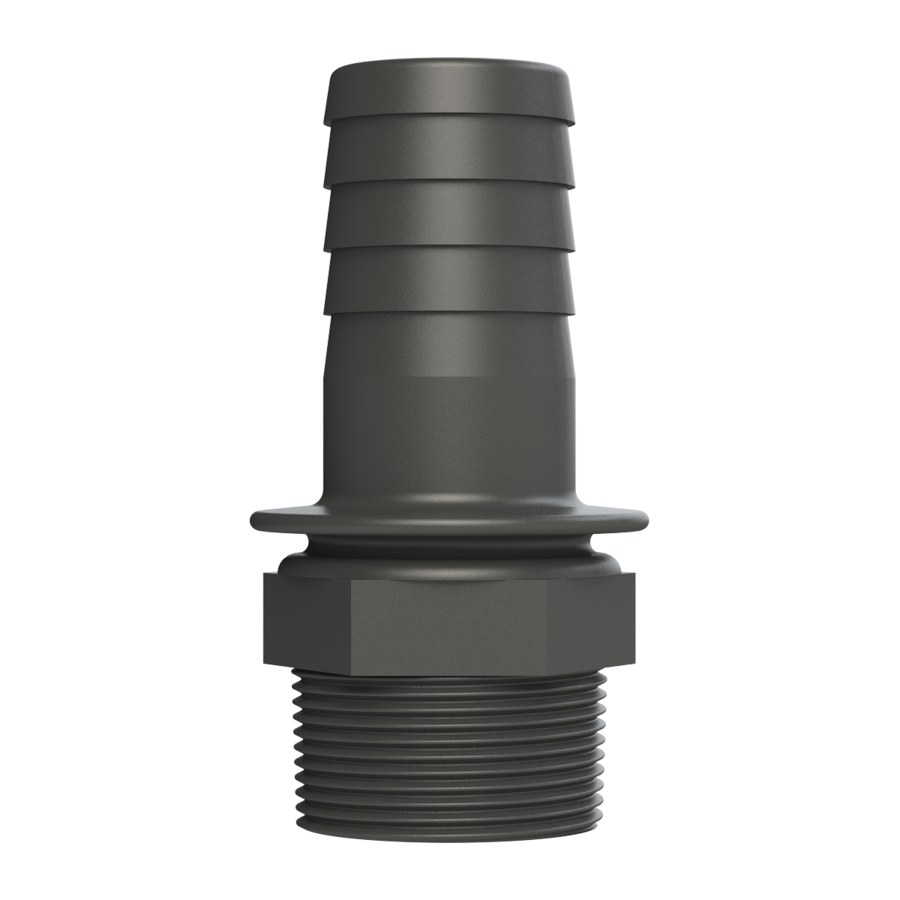

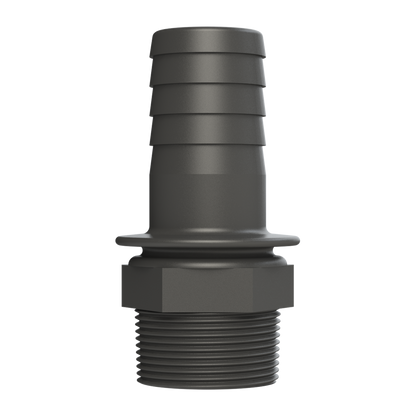

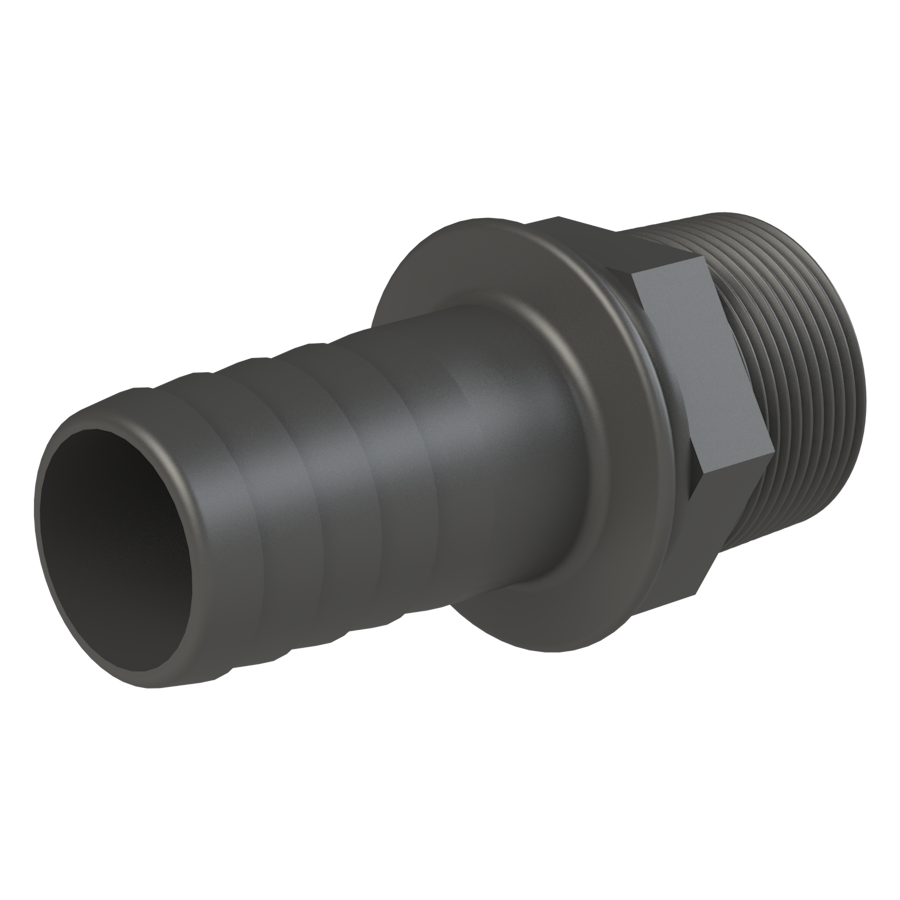

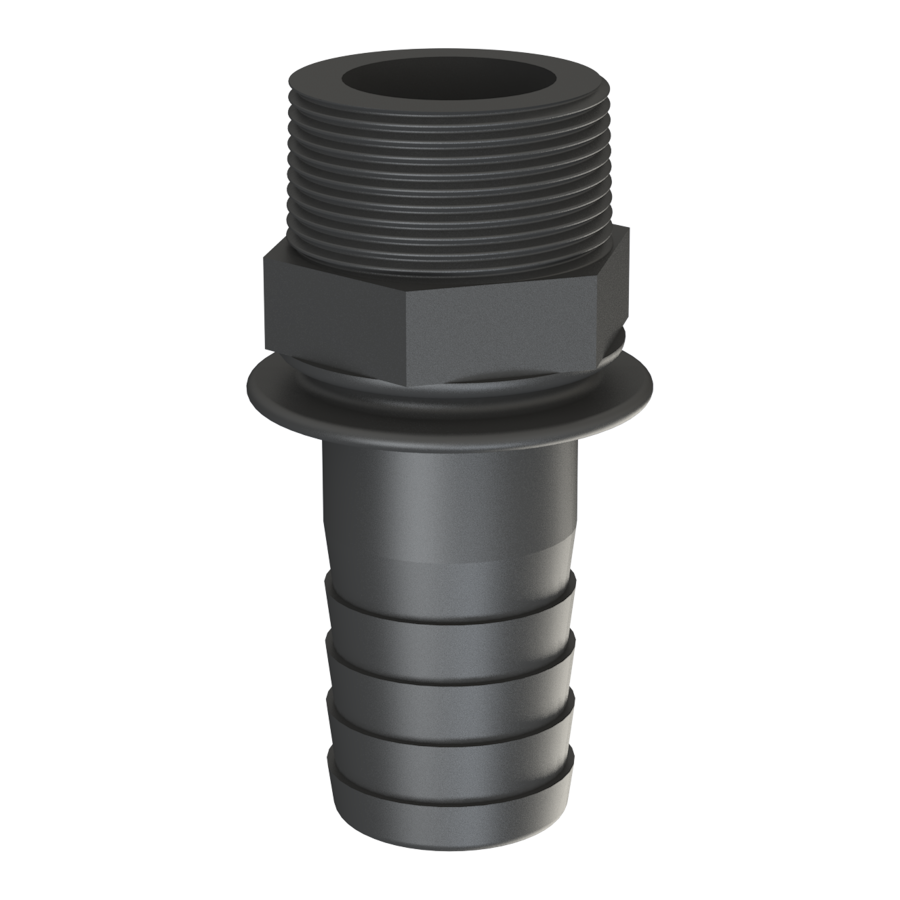

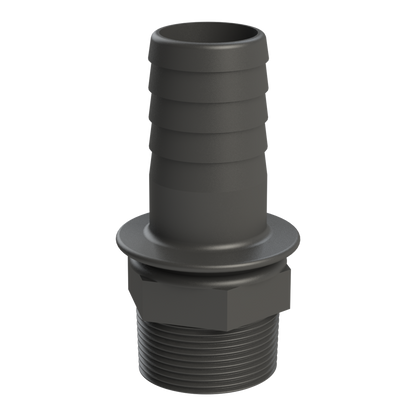

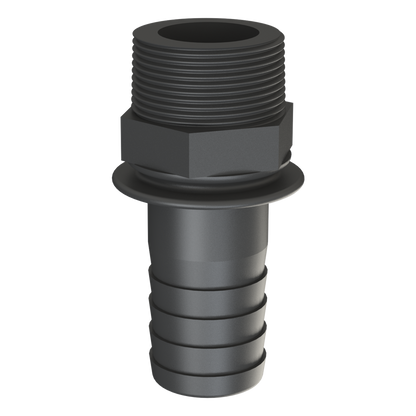

Manufactured from black glass-filled polypropylene, this CPP® fitting connects a 1½″ BSPP female port to flexible hose with a nominal internal diameter of 38 mm (1½″). The barbed hose tail is designed for use with a suitable hose clamp, and the hexagonal body provides spanner flats for tightening.

  • Male thread: 1½″ BSPP parallel, G1½.
  • Thread standard: ISO 228-1.
  • Hose size: 38 mm (1½″) nominal internal diameter.
  • Working pressure: 100 psi (approximately 6.9 bar) at 20°C.

Use a suitable seal for the mating BSPP connection and secure the hose with an appropriate clamp. Check material compatibility with the liquid and operating temperature. The complete assembly’s working pressure is limited by its lowest-rated component.
