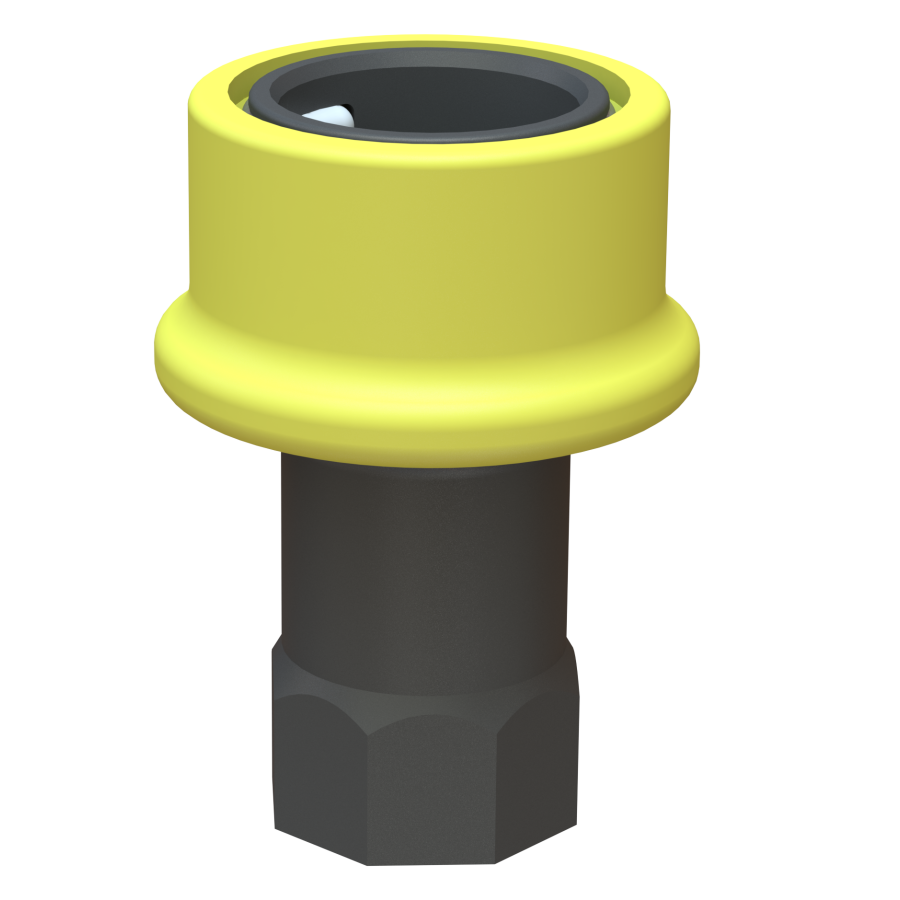

1″ Dry-Shut™ Female Valved Coupler × 1″ BSPP Female

Part No: DS10BFVF10BV027

CPP® 1″ Dry-Shut™ female valved coupler for minimum-spill liquid transfer. The internal poppet closes automatically on disconnection to help reduce product loss and air inclusion.

Specification

  • Dry-Shut™ connection: 1″ female valved ISO-B profile
  • Rear connection: 1″ BSPP female
  • Body material: glass-filled polypropylene
  • Main / poppet seals: Viton®
  • Spring: 316 stainless steel
  • Maximum working pressure: 100 psi / approximately 7 bar when connected
  • Typical flow rate: approximately 168 L/min / 45 US gpm
  • Connection standard: ISO 7241-1 Series B (ISO-B)

Connects to the matching 1″ Dry-Shut™ male valved adaptor. Use only with compatible liquids and within the operating limits of the complete transfer system.
