• CPP® 1″ Dry-Shut™ Female Valved Coupler × 1″ NPS Female
1 1

1″ Dry-Shut™ Female Valved Coupler × 1″ NPS Female - GF Polypropylene - Viton® - CPP®

1″ Dry-Shut™ Female Valved Coupler × 1″ NPS Female - GF Polypropylene - Viton® - CPP®

DS10BFVF10MV027

£52.05 GBP ex VAT
£62.46 GBP
£0.00 GBP £62.46 GBP
inc VAT
Sale Awaiting stock
Taxes included. Shipping calculated at checkout.

Out of stock

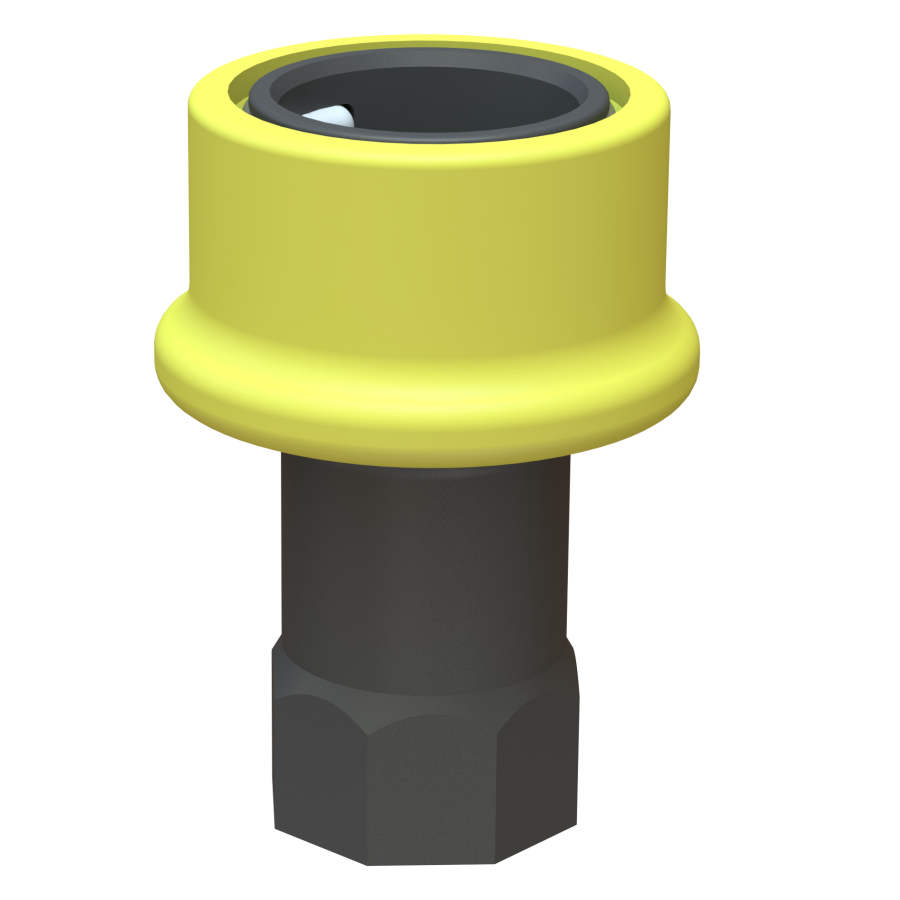

1″ Dry-Shut™ Female Valved Coupler × 1″ NPS Female

Part No: DS10BFVF10MV027

CPP® 1″ Dry-Shut™ female valved coupler with a 1″ NPS female rear connection for compatible US-style straight-thread systems.

The coupling uses an ISO 7241-1 Series B (ISO-B) interchangeable profile and automatically closes its internal poppet when disconnected.

Specification

  • Dry-Shut™ connection: 1″ female valved ISO-B profile
  • Rear connection: 1″ NPS female
  • Body material: glass-filled polypropylene
  • Main / poppet seals: Viton®
  • Spring: 316 stainless steel
  • Maximum working pressure: 100 psi / approximately 7 bar when connected
  • Typical flow rate: approximately 168 L/min / 45 US gpm

Use with the matching 1″ Dry-Shut™ male valved adaptor and a compatible NPS sealing arrangement.

View full details
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES

Check the connection before you order

Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.

Ask CPP technical support
Camlock size chartDimensions and connection sizes → Chemical resistanceMaterial application guidance → Material statementProduct and regulatory information → Identify an IBC outletFind the correct tank connection →
