• CPP® 1″ Dry-Shut™ Male Valved Adaptor × 1″ BSPP Female
1 1

1″ Dry-Shut™ Male Valved Adaptor × 1″ BSPP Female - GF Polypropylene - Viton® - CPP®

1″ Dry-Shut™ Male Valved Adaptor × 1″ BSPP Female - GF Polypropylene - Viton® - CPP®

DS10BMVF10BV027

£35.70 GBP ex VAT
£42.84 GBP
£0.00 GBP £42.84 GBP
inc VAT
Sale Awaiting stock
Taxes included. Shipping calculated at checkout.

In stock

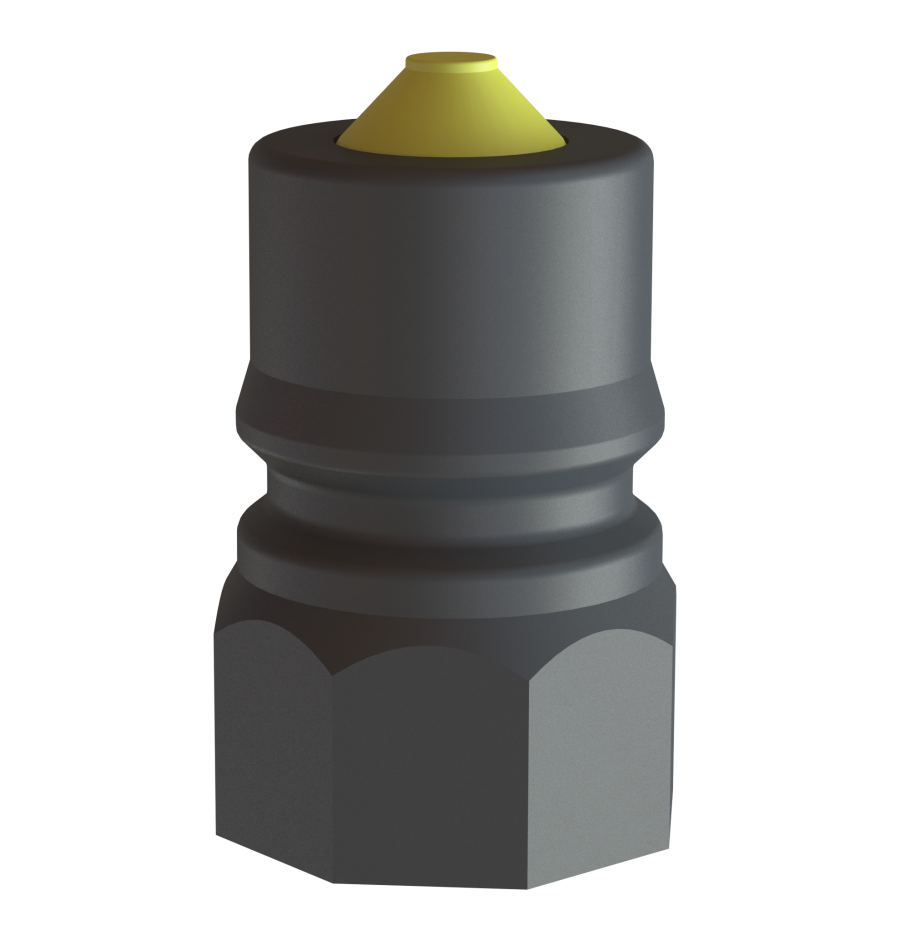

1″ Dry-Shut™ Male Valved Adaptor × 1″ BSPP Female

Part No: DS10BMVF10BV027

CPP® 1″ Dry-Shut™ male valved adaptor for clean, repeatable liquid transfer with automatic shut-off on disconnection.

The coupling uses an ISO 7241-1 Series B (ISO-B) interchangeable profile. The internal poppet closes automatically when disconnected to help reduce spillage, product loss and air inclusion.

Specification

  • Dry-Shut™ connection: 1″ male valved ISO-B profile
  • Rear connection: 1″ BSPP female
  • Body material: glass-filled polypropylene
  • Main / poppet seals: Viton®
  • Spring: 316 stainless steel
  • Maximum working pressure: 100 psi / approximately 7 bar when connected
  • Typical flow rate: approximately 168 L/min / 45 US gpm

Use with the matching 1″ Dry-Shut™ female valved coupler and within the operating limits of the complete transfer system.

View full details
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES

Check the connection before you order

Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.

Ask CPP technical support
Camlock size chartDimensions and connection sizes → Chemical resistanceMaterial application guidance → Material statementProduct and regulatory information → Identify an IBC outletFind the correct tank connection →
