1″ Dry-Shut™ Male Valved Adaptor × 1″ NPS Female

Part No: DS10BMVF10MV027

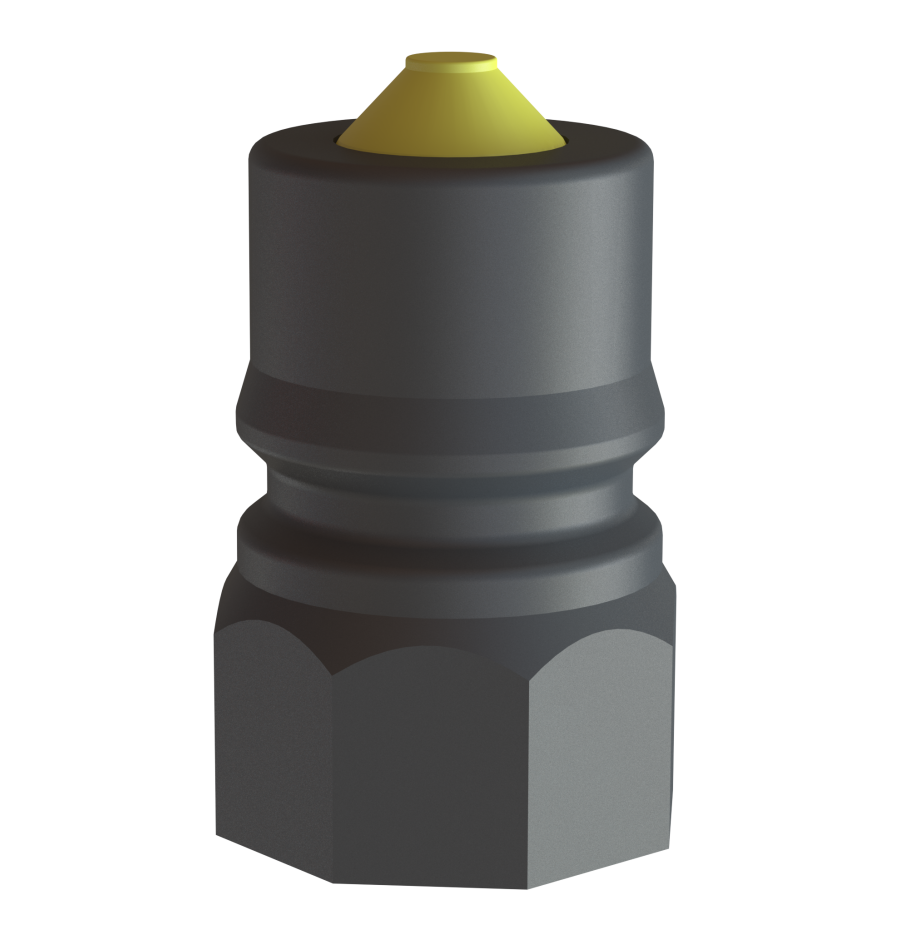

CPP® 1″ Dry-Shut™ male valved adaptor with a 1″ NPS female rear connection for compatible US-style straight-thread systems.

The coupling uses an ISO 7241-1 Series B (ISO-B) interchangeable profile. On disconnection, the internal poppet closes automatically to help reduce spillage and air inclusion.

Specification

  • Dry-Shut™ connection: 1″ male valved ISO-B profile
  • Rear connection: 1″ NPS female
  • Body material: glass-filled polypropylene
  • Main / poppet seals: Viton®
  • Spring: 316 stainless steel
  • Maximum working pressure: 100 psi / approximately 7 bar when connected
  • Typical flow rate: approximately 168 L/min / 45 US gpm

Use with the matching 1″ Dry-Shut™ female valved coupler and a compatible NPS sealing arrangement.
