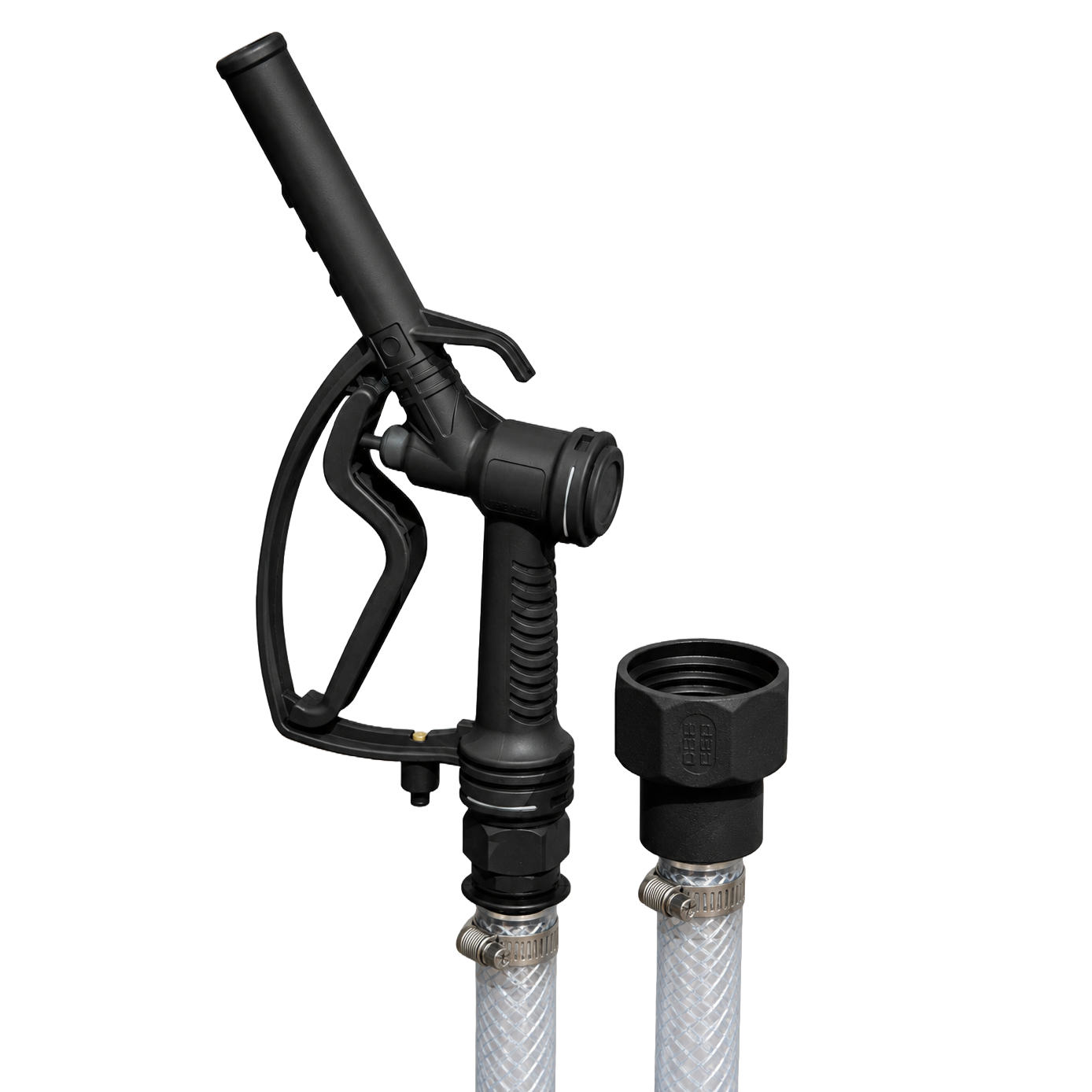

1″ Clear Braided PVC Hose Kit – Trigger Nozzle × S60X6 Female IBC Connection – 3 m / 10 ft
Part No: HK10PV10N60UD027
Specification
- Hose dimensions: 25 mm internal diameter × 31 mm external diameter (approx. 0.98″ ID × 1.22″ OD; nominal 1″ hose)
- Hose type: Standard clear braided PVC, with polyester reinforcement
- Total length: 3 m / approx. 10 ft
- Nozzle: 1″ trigger nozzle
- Nozzle inlet: manufacturer-supplied 1″ BSPP female swivel
- Nozzle inlet material: glass-filled polypropylene
- Nozzle seal: Viton
- Nozzle spring: upgraded 316 stainless steel
- Hose clips: stainless steel
- IBC connection: CPP® S60X6 female fitting with suitable hose tail
- IBC seal: PP-based elastomer seal
- Application: gravity-fed discharge from IBC tanks
- Maximum nozzle working temperature: 50 °C / 122 °F
- Quality control: incoming nozzle batches leak-tested on receipt
Product description
CPP® assembles this hose kit using 3 m of clear braided PVC hose, 25 mm ID × 31 mm OD, stainless-steel hose clips and a CPP® S60X6 female fitting with a suitable hose tail for connection to a compatible IBC outlet.
The 1″ trigger nozzle is supplied with a manufacturer-fitted glass-filled polypropylene 1″ BSPP female inlet swivel, Viton seal and upgraded 316 stainless-steel spring.
Gravity-feed use only
This hose kit is intended only for gravity-fed discharge from IBC tanks. It is not sold as a pressure-rated hose assembly and is not intended for pumped or pressurised transfer service.
Any published pressure rating for the CPP® S60X6 female hose-tail fitting applies to that individual fitting only and must not be taken as a pressure rating for the complete hose kit.
IBC compatibility
Fits standard S60X6 male IBC outlets, including SCHÜTZ S60X6 outlets. Suitable for selected WERIT, MAUSER, Mamor and Sotralentz tanks when fitted with a matching S60X6 male outlet and suitable sealing face.
Check the actual outlet before ordering, as connections vary between models and replacement valves.
Food-contact note
The trigger nozzle is not manufactured from food-grade materials and this hose kit is not intended for food or beverage contact applications.
Intended liquids and chemical compatibility
This kit is intended for gravity-fed dispensing of non-potable water from compatible IBC tanks. For other non-food liquids, contact CPP before ordering so that compatibility can be assessed across the PVC hose, polypropylene fittings and nozzle, Viton nozzle seal, PP-based elastomer IBC seal and 316 stainless-steel spring. Provide the liquid name, concentration, temperature and expected contact time; for mixtures, provide the safety data sheet and composition where available.
Do not use with hydrocarbons, including petrol, diesel and mineral oils. The hose manufacturer warns that hydrocarbons rapidly degrade this PVC hose. General descriptions such as “water-based” do not establish suitability for a particular chemical or mixture.
Use the CPP® chemical resistance guide for braided PVC hose screening ratings at 20 °C and guidance for polypropylene and PP-based elastomer. Read it alongside the Material Application Statement. Ratings for individual materials do not establish suitability of the complete kit or its operating-temperature limit. All wetted components must be suitable for the proposed liquid and conditions.
Flow performance
No verified maximum flow rate is declared for the complete 3 m hose kit. Gravity-fed flow varies with the liquid level above the nozzle, the IBC outlet and valve, hose routing, nozzle opening and liquid properties.
