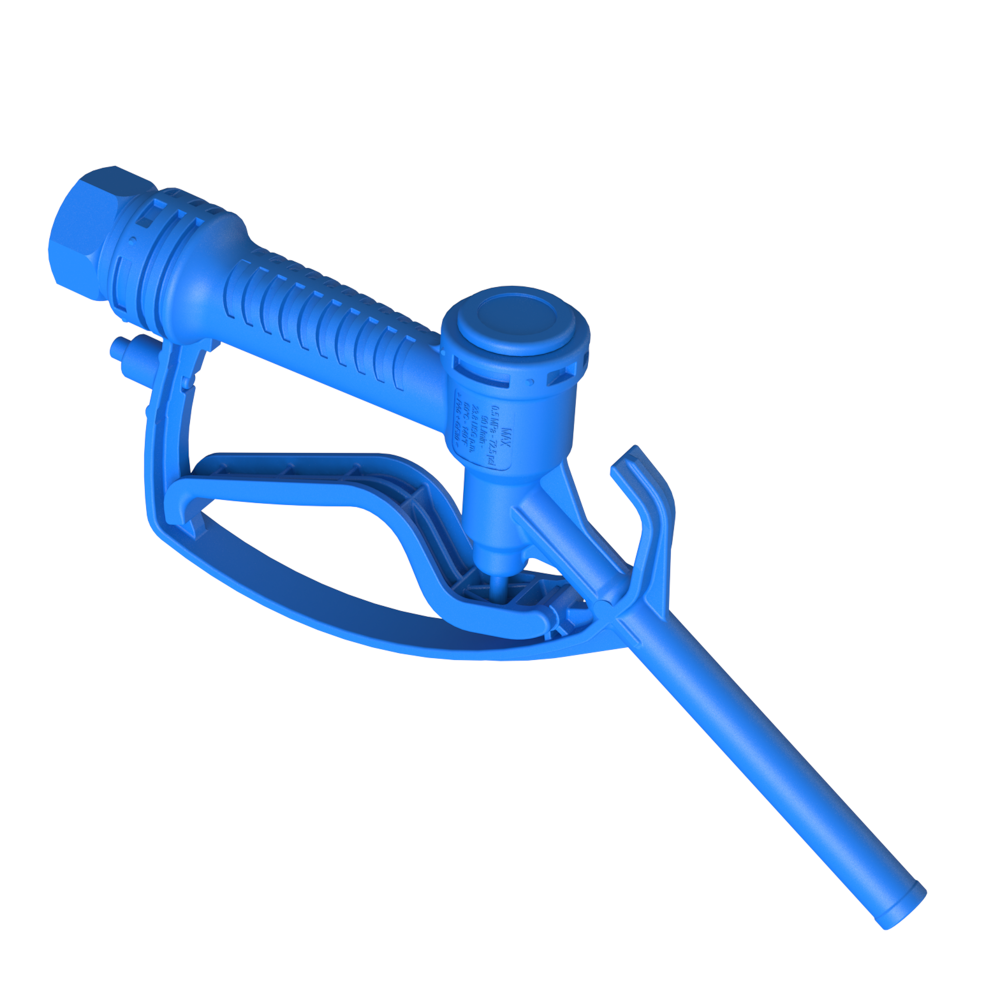

¾″ (19 mm) AdBlue / DEF Trigger Nozzle × 1″ BSPP Female

Part No: TN10UV19T10B029

This blue trigger nozzle is designed for AdBlue / DEF (urea solution) dispensing and is supplied in the manufacturer's standard configuration. Incoming batches are leak-tested on receipt.

Specification

  • Application: AdBlue / DEF / urea solution dispensing
  • Outlet size: ¾″ / 19 mm
  • Inlet connection: 1″ BSPP female swivel
  • Nozzle body: reinforced blue PA6
  • Seal material: FKM (Viton)
  • Rated nozzle pressure: 5 bar / 0.5 MPa / 72.5 psi
  • Maximum nozzle flow: 90 L/min / 23.8 US gal/min
  • Maximum working temperature: 60 °C / 140 °F
  • Trigger opening force: 66 N / 14.6 lbf
  • Trigger holding force: 24 N / 5.3 lbf
  • Quality control: incoming batches leak-tested on receipt

The pressure, flow, temperature and trigger-force figures are the nozzle manufacturer's specifications. When used as part of a hose, IBC or transfer assembly, the working pressure must not exceed the rating of the lowest-rated component in the system.

Food-contact note

This nozzle is not manufactured from food-grade materials and is not intended for food or beverage contact applications.
