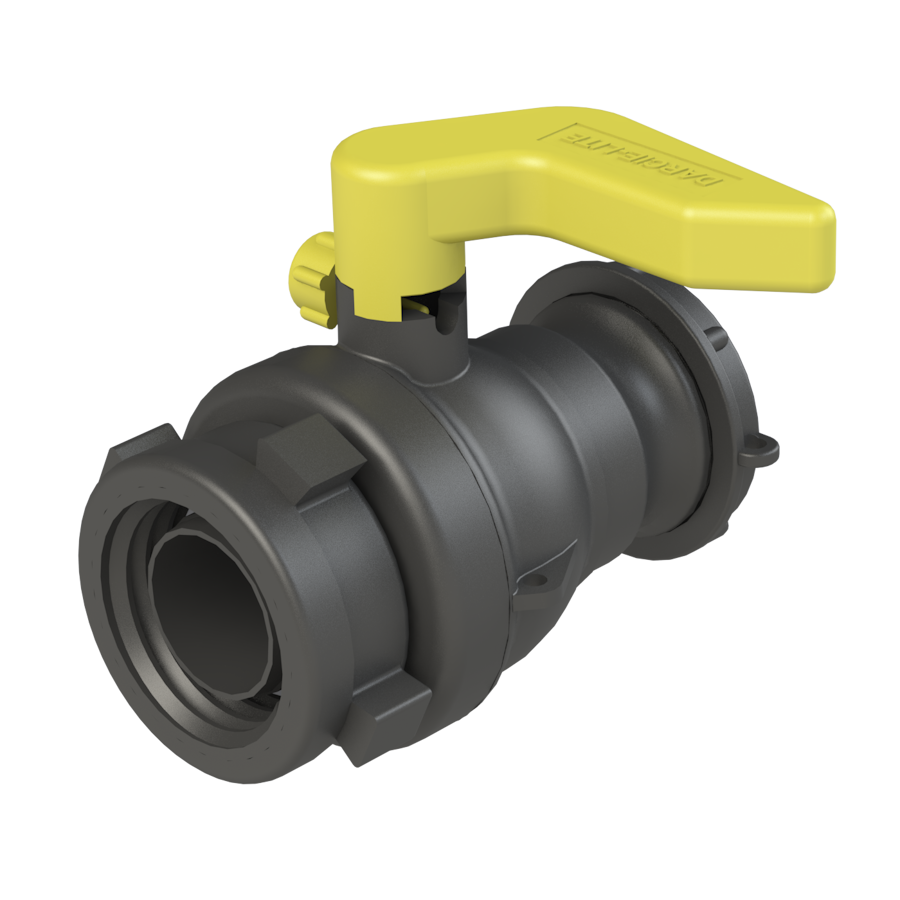

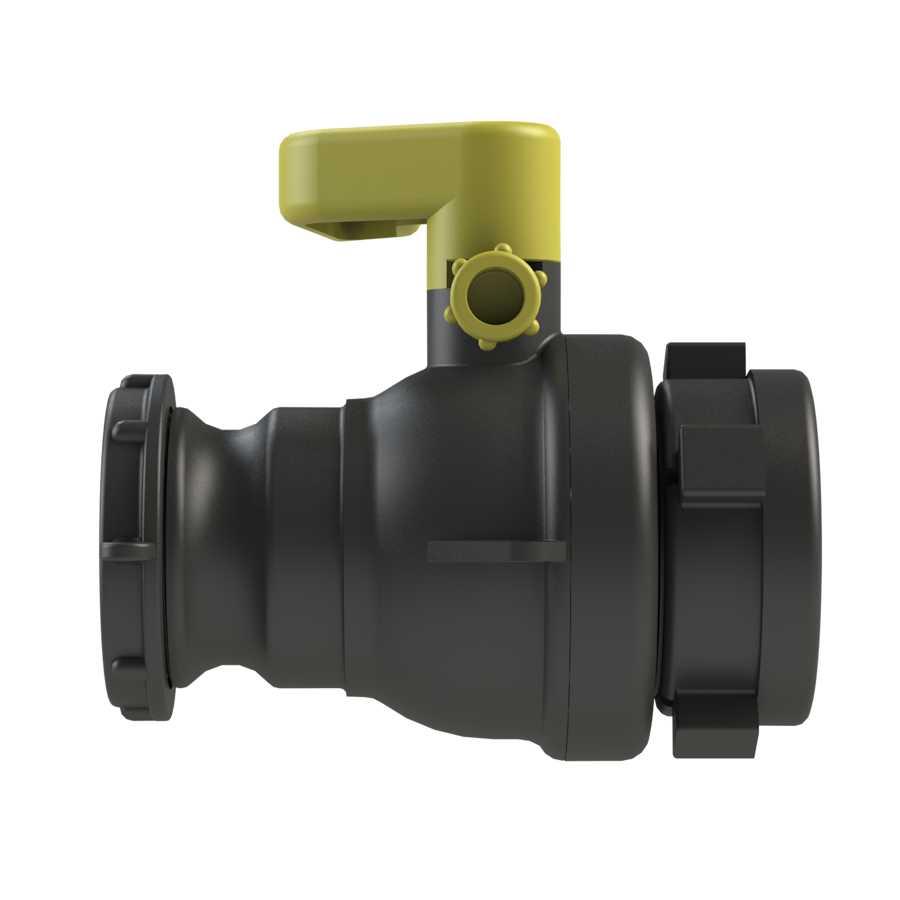

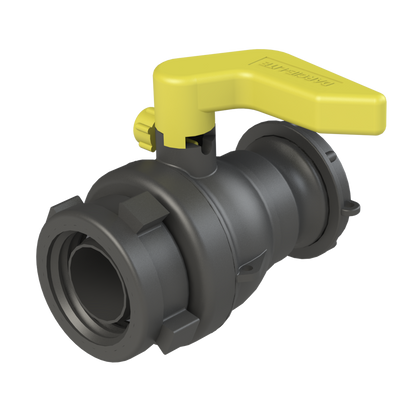

2″ DARCIE-LITE IBC Ball Valve – S60X6 Female × 2″ Male Camlock – GF Polypropylene – CPP®

CPP® DARCIE-LITE 2″ IBC ball valve designed as a replacement outlet valve for a compatible IBC with an S60X6 male tank-neck connection.

• Part no.: DL260UF2CAM7
• Application: replacement IBC outlet valve
• IBC tank connection: S60X6 female buttress
• Outlet: 2″ male Camlock adaptor
• Dust-cap retaining thread: short 2″ BSP thread, approximately 9 mm long, used only to retain the low-profile dust cap
• Body: black glass-filled polypropylene
• Handle: yellow

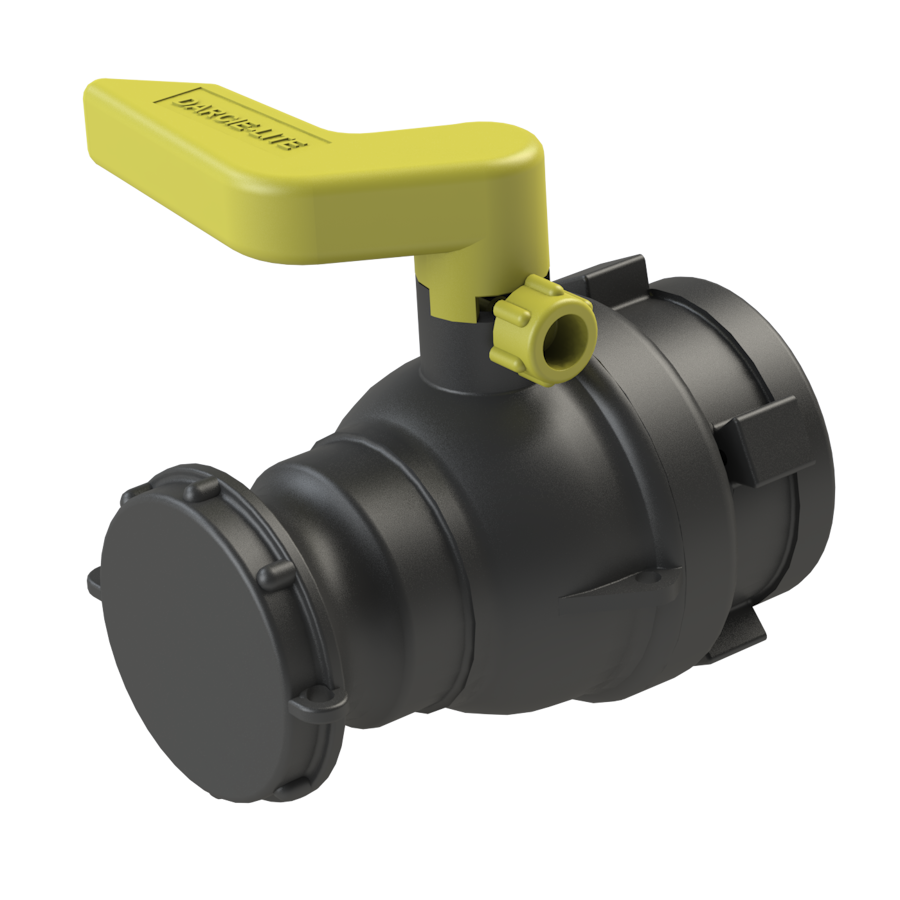

• Supplied with: low-profile dust cap

Important: the short 2″ BSP thread on the front of the Camlock is not intended as a working connection for adaptors or pipework. Its purpose is only to retain the low-profile dust cap.

IBC compatibility

This version fits IBCs where the tank/bottle neck itself has an S60X6 male thread. Specialist replacement-valve references identify S60X6 tank-neck applications on selected MAUSER / former MAMOR, Sotralentz and MaschioPack IBCs.

Do not choose the valve by brand name alone. The same IBC manufacturer can use different tank-neck threads on different models or production runs. In particular, many SCHÜTZ and Greif replacement-valve applications use an S75X6 tank-neck connection rather than S60X6.

Before ordering, remove or identify the existing valve and confirm the tank-neck outside diameter and thread pitch. If uncertain, send CPP a clear photograph and measurements through Ask CPP Technical Support.

The Camlock outlet connects to a matching 2″ female Camlock coupling. Also confirm material suitability for the liquid and operating conditions before use.
