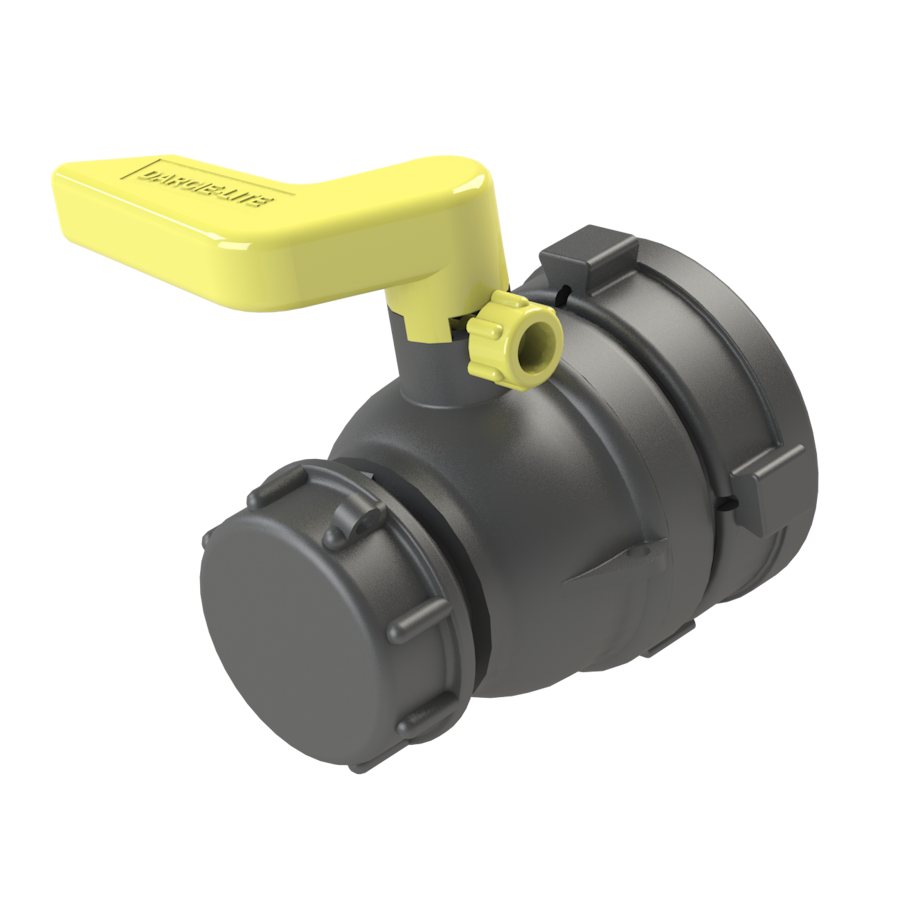

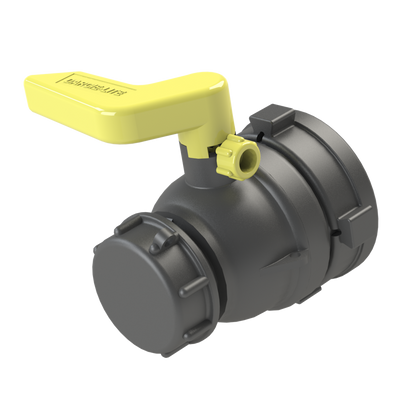

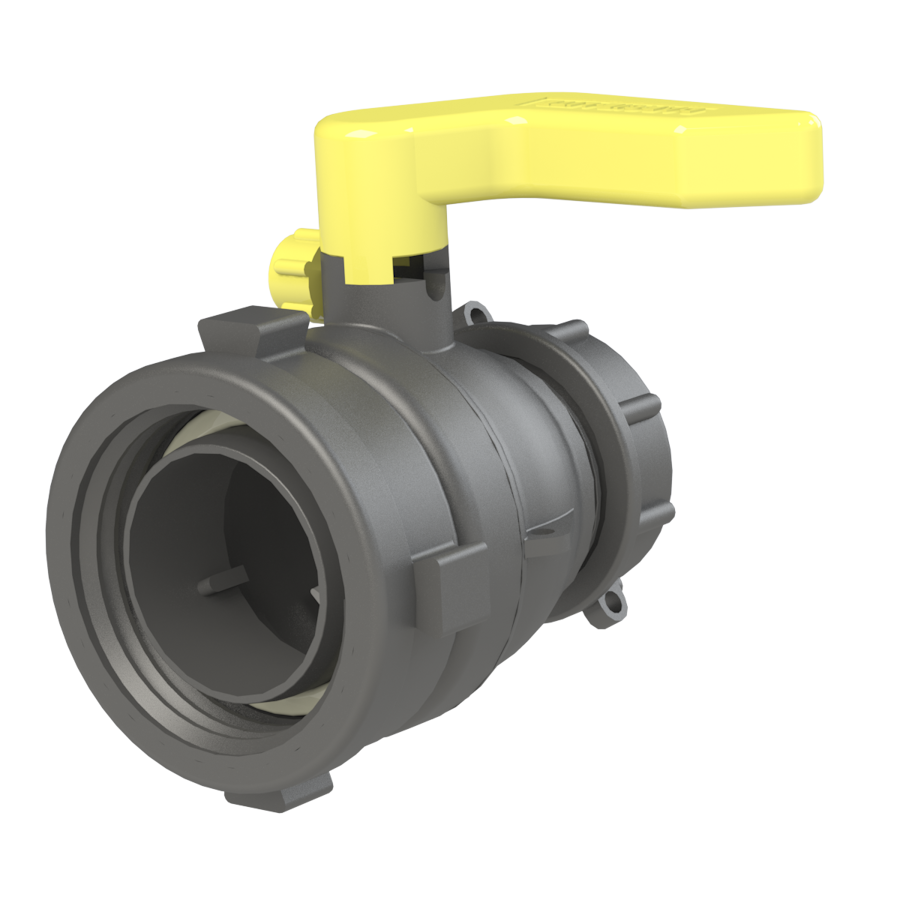

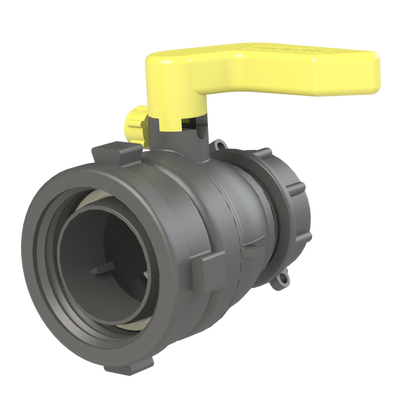

2″ DARCIE-LITE IBC Ball Valve – S75X6 Female × 2″ NPS Male – GF Polypropylene – CPP®

CPP® DARCIE-LITE 2″ IBC ball valve designed as a replacement outlet valve for a compatible IBC with an S75X6 male tank-neck connection.

• Part no.: DL275UF2NPM7
• Application: replacement IBC outlet valve
• IBC tank connection: S75X6 female buttress
• Outlet: 2″ NPS male
• Thread standard: ASME B1.20.1 thread form — straight/parallel pipe thread, 11.5 TPI
• Nominal outside diameter: approximately 60.3 mm (2.375″)
• Body: black glass-filled polypropylene
• Handle: yellow
• Supplied with: dust cap

The 2″ NPS male outlet is a straight/parallel 60° pipe thread. It can be used with a matching 2″ NPS female connection. A 2″ NPT female thread can also be fitted to the 2″ NPS male because the nominal size and 11.5 TPI thread form are compatible; use suitable PTFE thread tape or an appropriate thread sealant to obtain the seal. Confirm adequate thread engagement and leak-test the joint before service.

IBC compatibility

This version is intended as a replacement outlet valve for IBCs where the tank/bottle neck has an S75X6 male thread. S75X6 replacement-valve applications are commonly associated with selected SCHÜTZ, Greif / Fustiplast and Clawson IBCs.

IBC manufacturers can use different neck threads across models and production periods, so do not select by brand name alone. Confirm the tank-neck outside diameter and thread pitch before ordering. If uncertain, use Ask CPP Technical Support.

Also confirm material suitability for the liquid, temperature and operating conditions before use. See the CPP chemical resistance guide for general material guidance.
