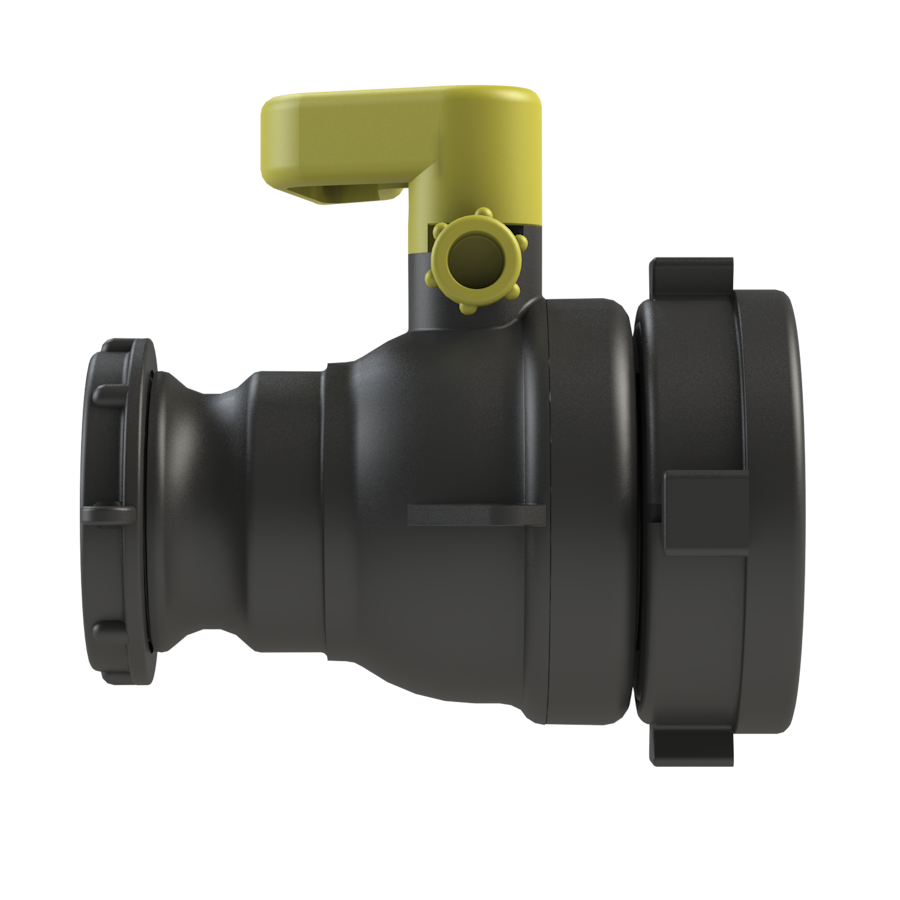

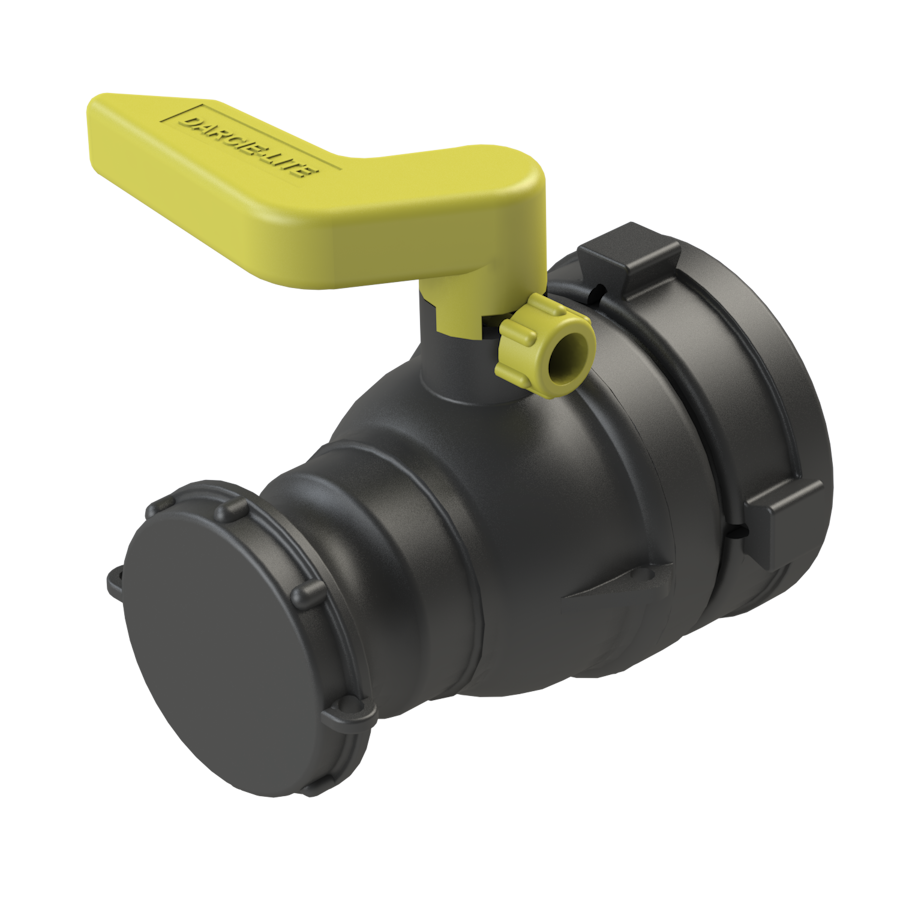

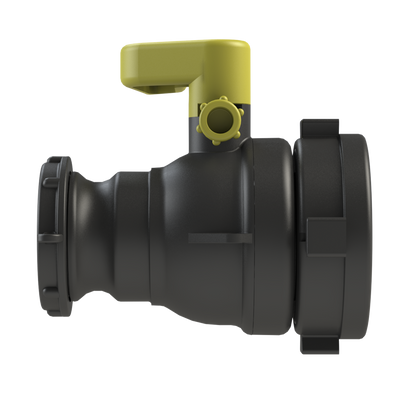

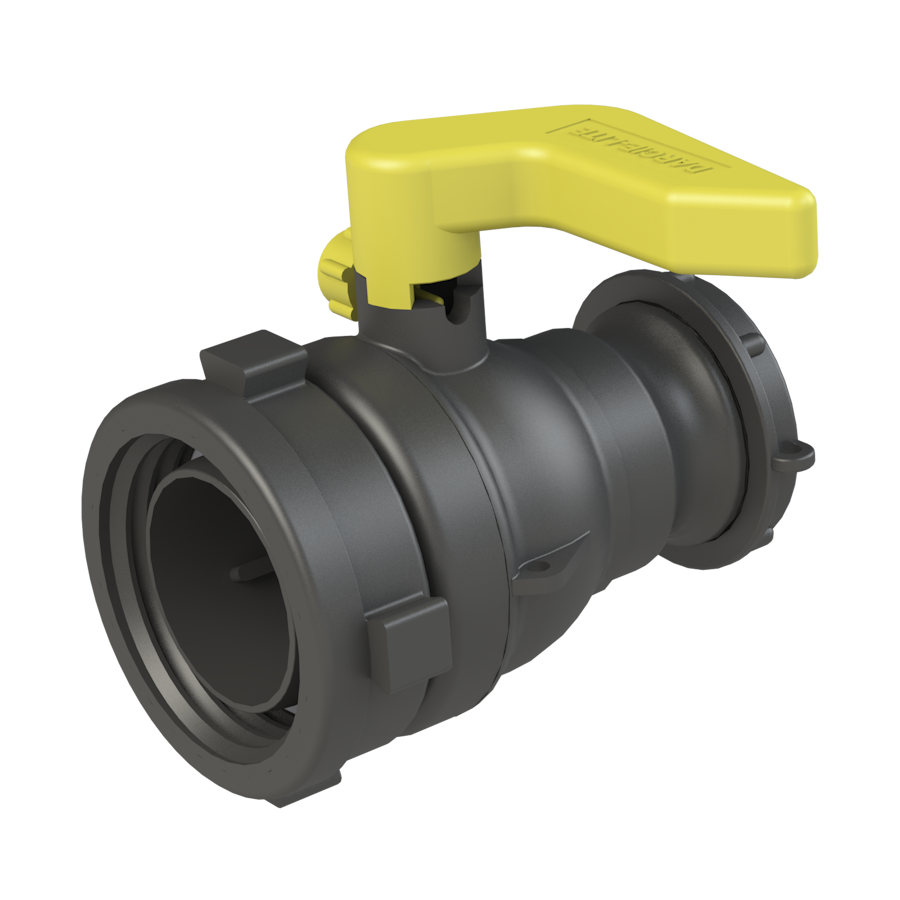

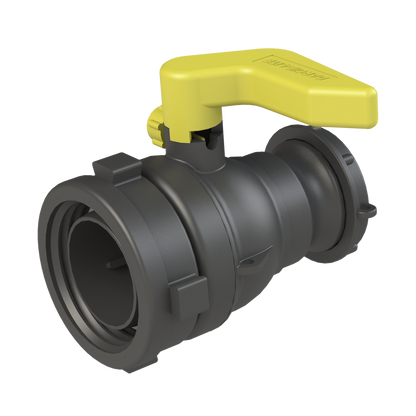

2″ DARCIE-LITE IBC Ball Valve – S75X6 Female × 2″ Male Camlock – GF Polypropylene – CPP®

CPP® DARCIE-LITE 2″ IBC ball valve designed as a replacement outlet valve for a compatible IBC with an S75X6 male tank-neck connection.

• Part no.: DL275UF2CAM7
• Application: replacement IBC outlet valve
• IBC tank connection: S75X6 female buttress
• Outlet: 2″ male Camlock adaptor
• Dust-cap retaining thread: short 2″ BSP thread, approximately 9 mm long, used only to retain the low-profile dust cap
• Body: black glass-filled polypropylene
• Handle: yellow
• Supplied with: low-profile dust cap

Important: the short 2″ BSP thread on the front of the Camlock is not intended as a working connection for adaptors or pipework. Its purpose is only to retain the low-profile dust cap.

The 2″ male Camlock outlet connects to a matching 2″ female Camlock coupling.

IBC compatibility

This version is intended as a replacement outlet valve for IBCs where the tank/bottle neck has an S75X6 male thread. S75X6 replacement-valve applications are commonly associated with selected SCHÜTZ, Greif / Fustiplast and Clawson IBCs.

IBC manufacturers can use different neck threads across models and production periods, so do not select by brand name alone. Confirm the tank-neck outside diameter and thread pitch before ordering. If uncertain, use Ask CPP Technical Support.

Also confirm material suitability for the liquid, temperature and operating conditions before use. See the CPP chemical resistance guide for general material guidance.
