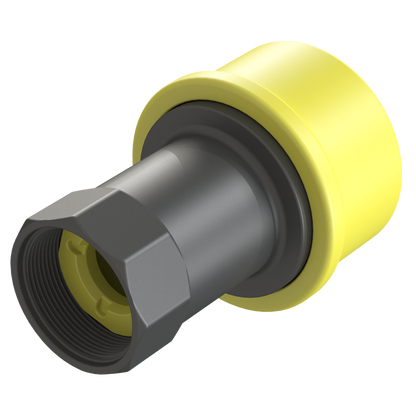

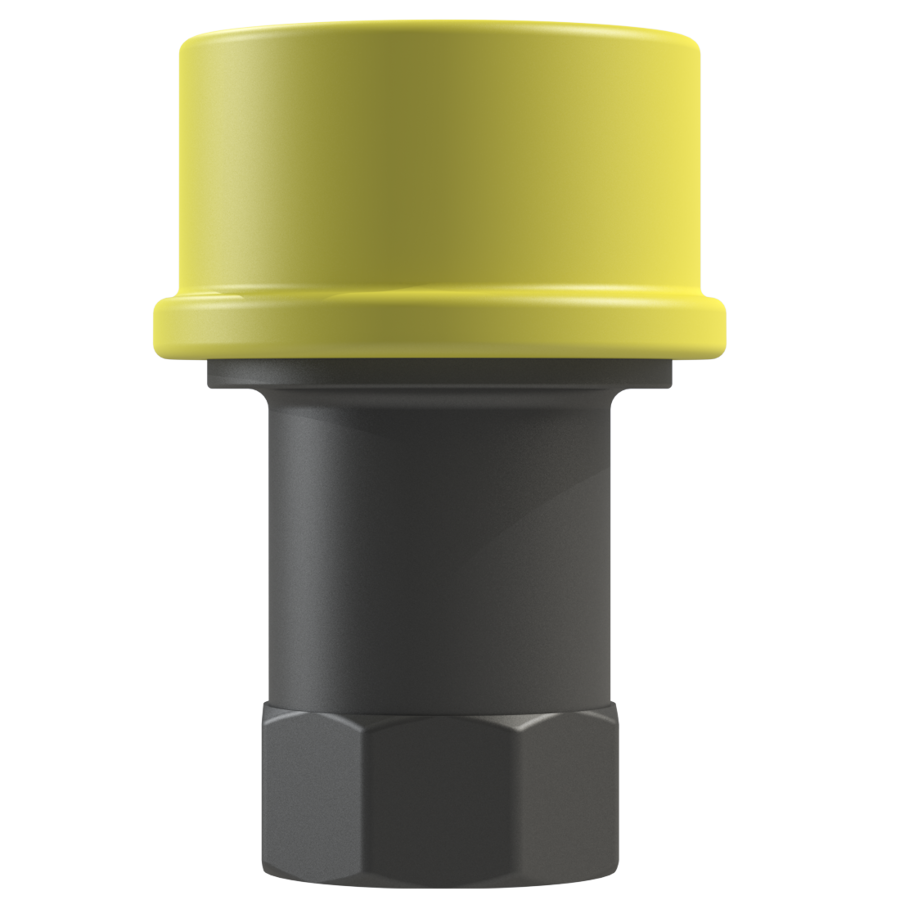

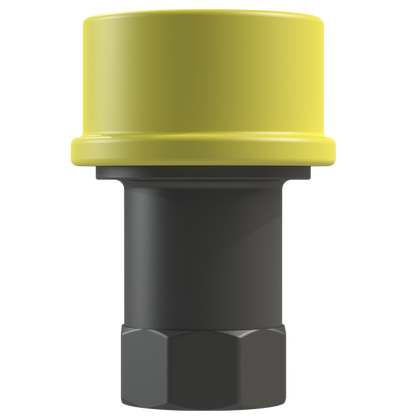

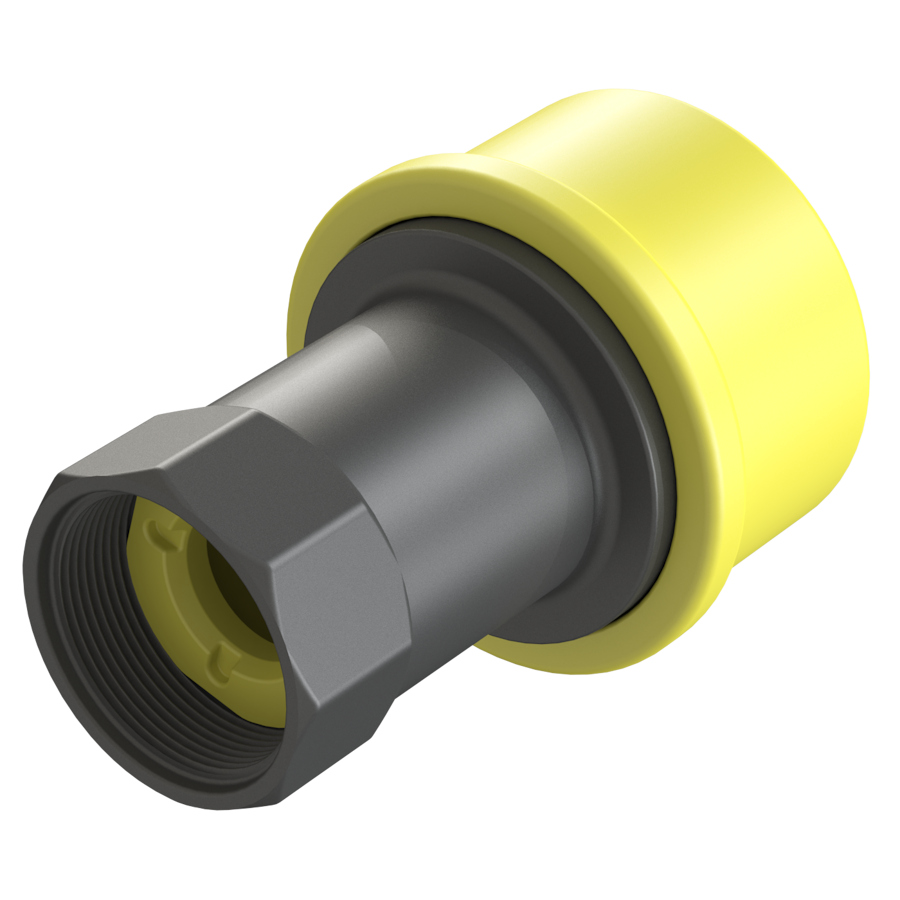

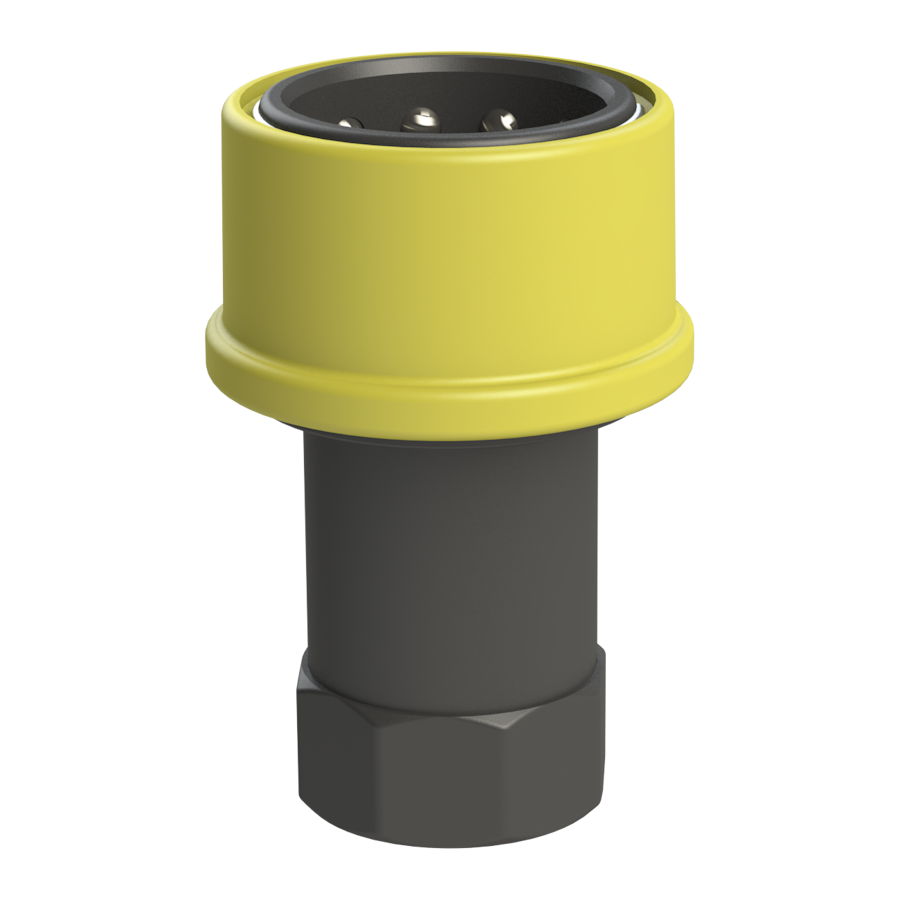

New-generation CPP® 2″ Dry-Shut™ female valved coupler with a stainless-steel ball locking system for secure engagement with the matching male ISO-A profile.
The coupling automatically closes its internal poppet when disconnected, helping reduce spillage, product waste and air inclusion in liquid-transfer systems.
Locking mechanism: stainless-steel ball locking system
Maximum working pressure: 100 psi / 7 bar
Pressure spike rating: up to 150 psi / 10 bar
Flow rate: up to approximately 700 L/min
Connection standard: ISO 7241-1 Series A (ISO-A)
How it works
Push the female coupler onto the matching 2″ Dry-Shut™ male adaptor to open both poppets and establish flow. On disconnection, both poppets close automatically.
Important information
As with other ISO-A dry-disconnect systems, a small residual volume can remain between the poppets. Approximately 80 ml may discharge during opening/disconnection, so suitable drip trays or bunding should be used where required.
Use only with compatible liquids and within the operating limits of the complete transfer system.
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES
Check the connection before you order
Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.
