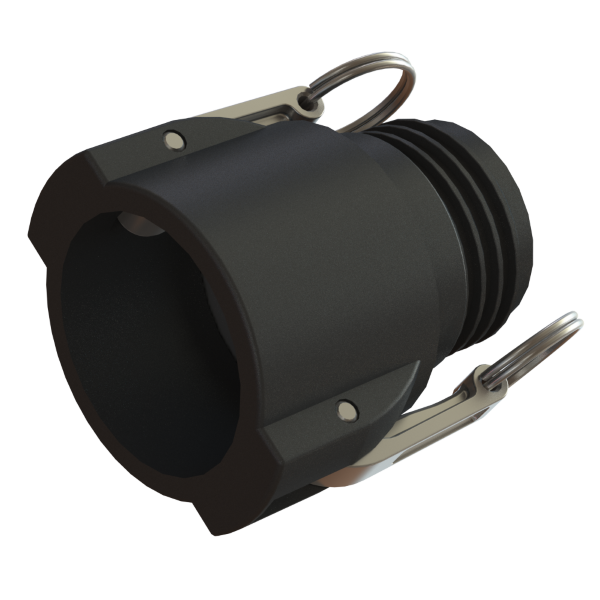

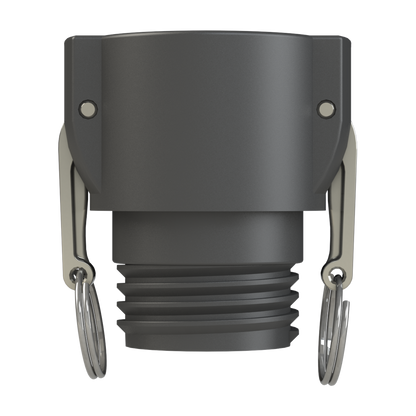

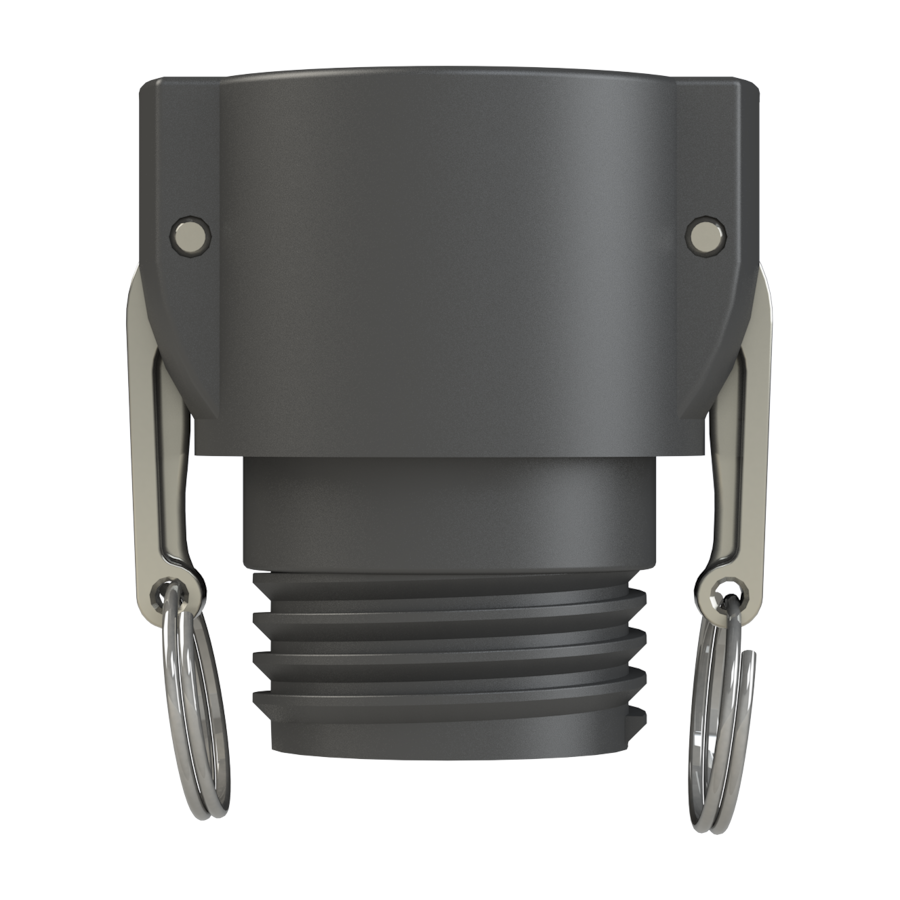

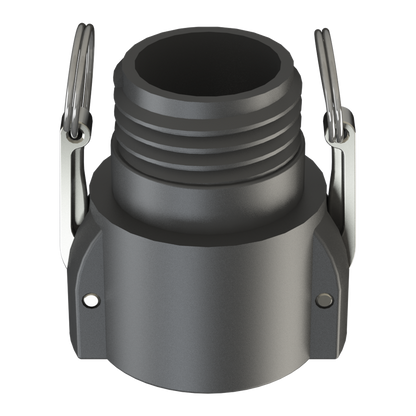

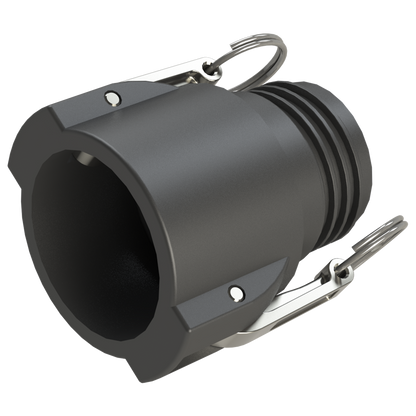

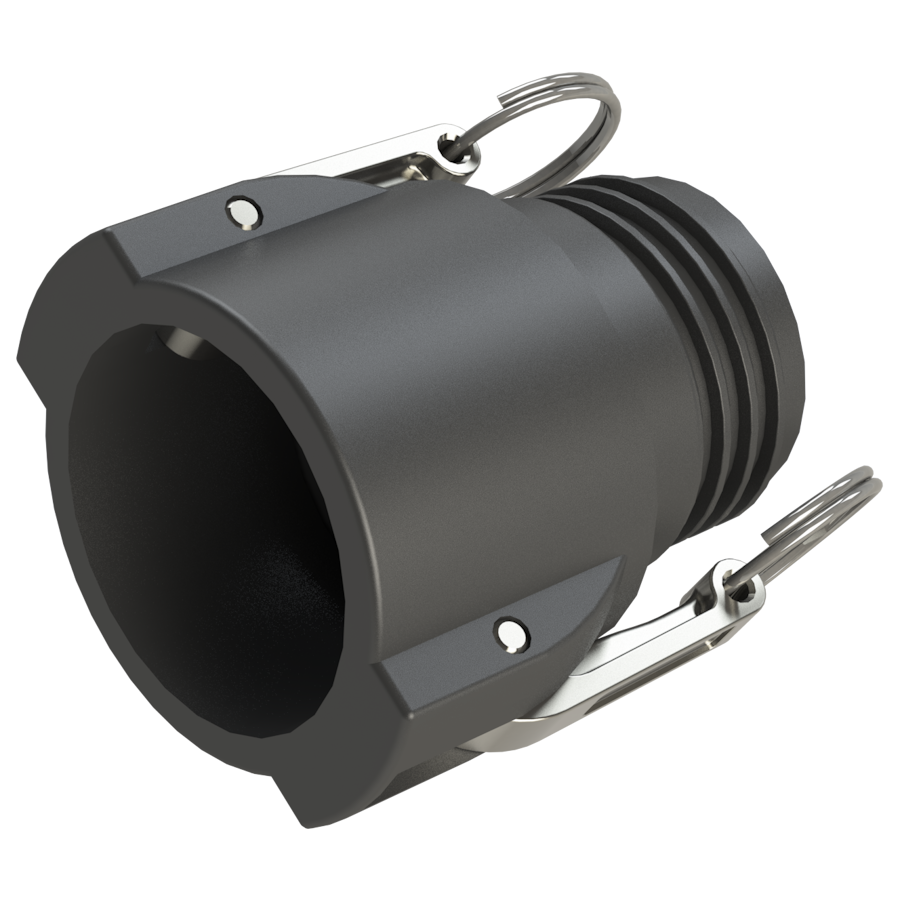

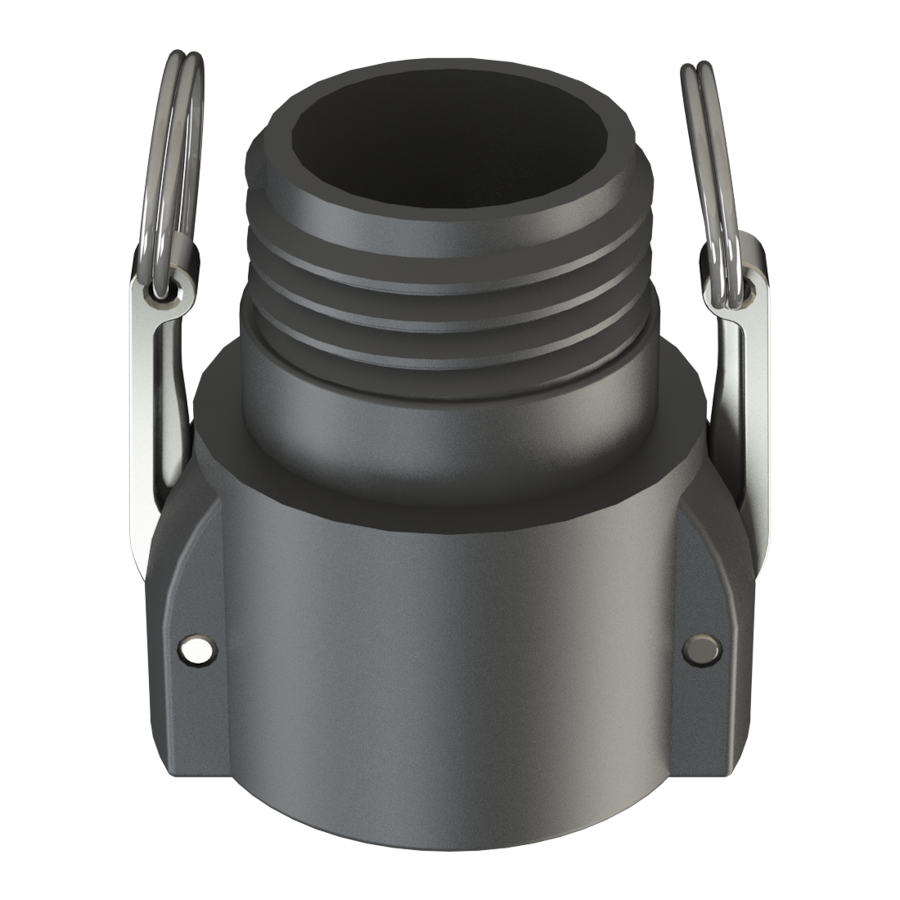

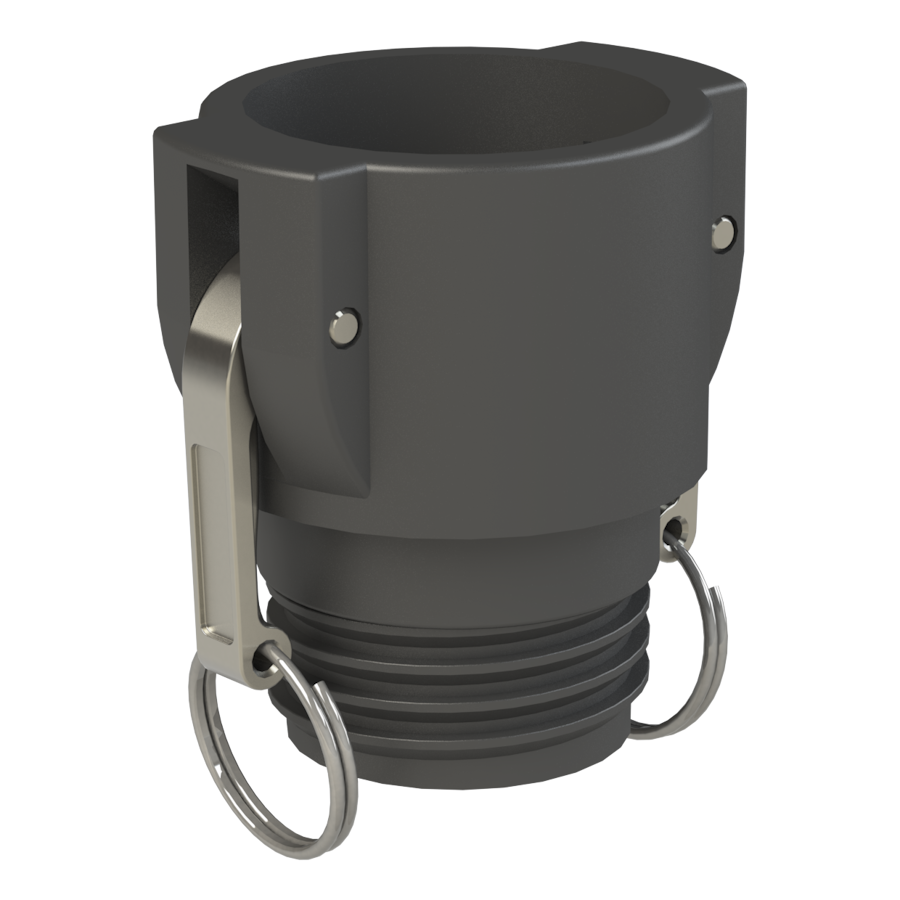

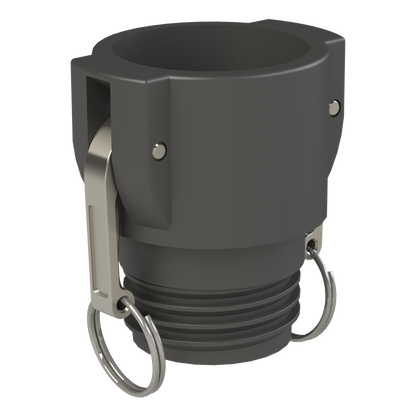

This CPP® Type B (Part B) coupling connects a 2″ Female Camlock to a S60X6 Male Buttress.
Converts a 2″ male Camlock connection to an S60X6 male buttress outlet, allowing a matching S60X6 female adaptor or accessory to be connected.
Connections and materials
Camlock connection: 2″ Female Camlock.
Other connection: S60X6 Male Buttress.
Body: black glass-filled polypropylene (GFPP).
Cam arms, rings and pins: 304 stainless steel.
Camlock gasket: PP Olefin Elastomer.
Product code: CFB20UD027.
Connection specification and fit
S60X6 male buttress thread: nominal 60 mm diameter with 6 mm pitch. Connect to a matching S60X6 female fitting with a suitable seal. S60X6 is distinct from BSPT, BSPP and NPT.
Camlock compatibility: Fits matching 2″ male Camlock heads manufactured to EN 14420-7 or US specification A-A-59326. Check the mating dimensions using the CPP® size chart.
The gasket in this female coupler seals against the matching male Camlock head.
Working pressure — water service
Temperature
Working pressure
−10°C
5 bar / approx. 73 psi
20°C
6.5 bar / approx. 94 psi
65°C
3 bar / approx. 44 psi
These guide ratings are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability under the intended operating conditions, including the liquid and temperature.
Installation and use
Check both connection sizes before ordering. Confirm the compatibility of the body, seals and connected components with the liquid and temperature. Support hoses and pipework to reduce strain on the fitting, and release pressure before disconnecting.
