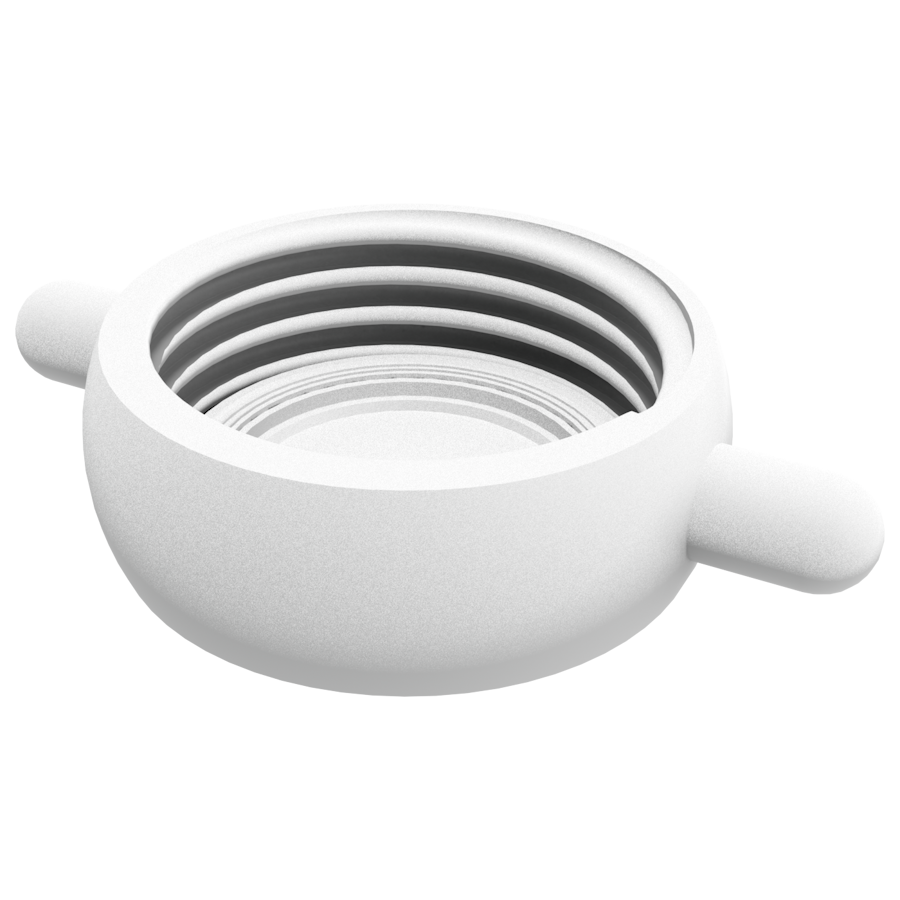

CPP® 3″ URT lugged female dust cap for closing and protecting compatible 3″ URT lugged male connections, moulded in straight natural polypropylene.
URT means Urban Round Thread. It is a coarse round-thread connection used in the UK and based on traditional fire-hose suction coupling patterns. Similar round-thread systems have been used by different manufacturers, so nominal size alone does not always guarantee interchangeability.
Compatibility: Check the mating thread form and dimensions before ordering. This is particularly important when matching older suction couplings and 4″ round-thread fittings, where compatibility can vary between manufacturers.
Specification
Lugged connection: 3″ URT female
Thread type: Urban Round Thread (URT)
Component: Dust Cap
Body material: Straight natural polypropylene
Sealing gasket: PP elastomer
Part number: LCU30P025
Pressure ratings — water service
Temperature
Pressure rating
−10°C
3 bar (approximately 44 psi)
20°C
5 bar (approximately 73 psi)
60°C
2 bar (approximately 30 psi)
These ratings apply to the CPP® straight natural polypropylene Lugged coupling range and are based on water service. The complete assembly is limited by its lowest-rated component. Verify suitability for the intended liquid, temperature and operating conditions before use.
Before use, confirm the lugged coupling size and thread form match the mating connection.
