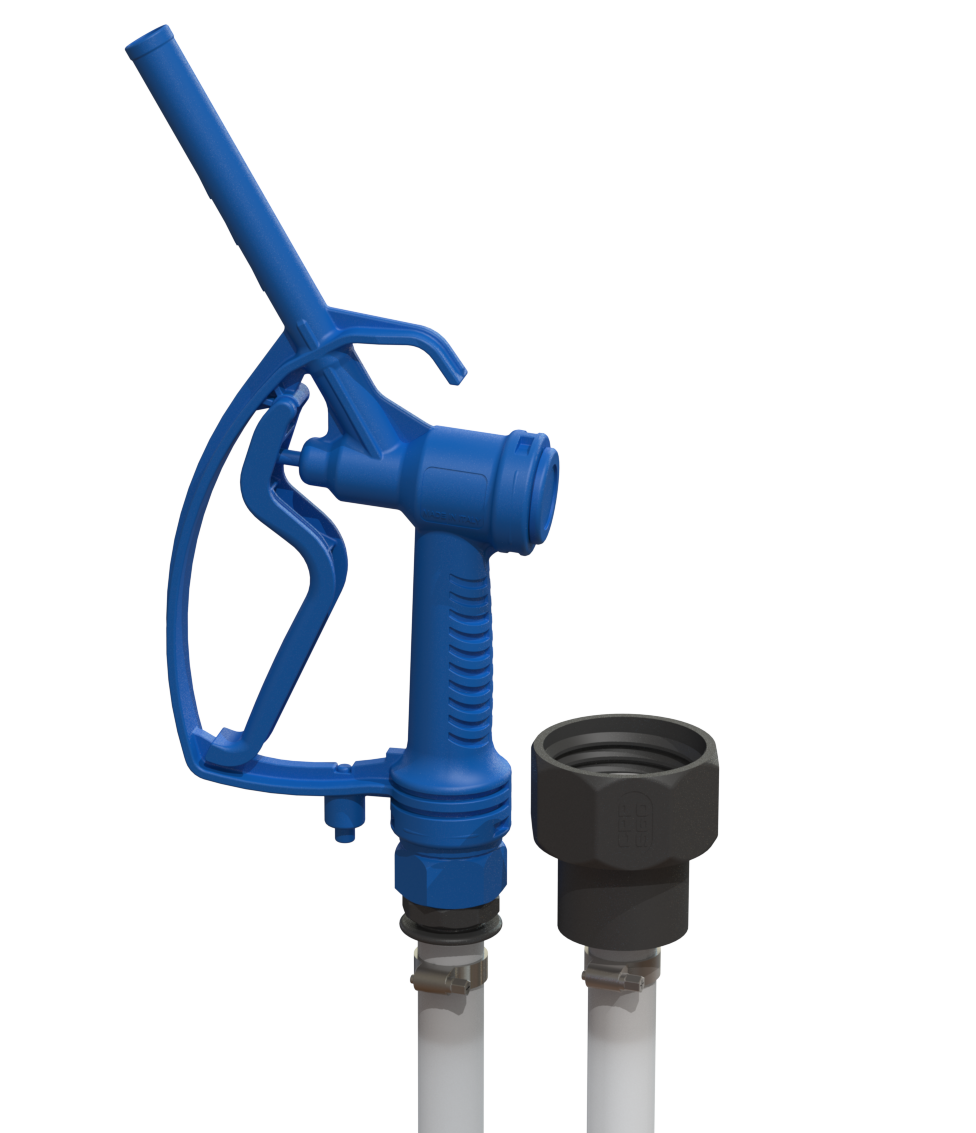

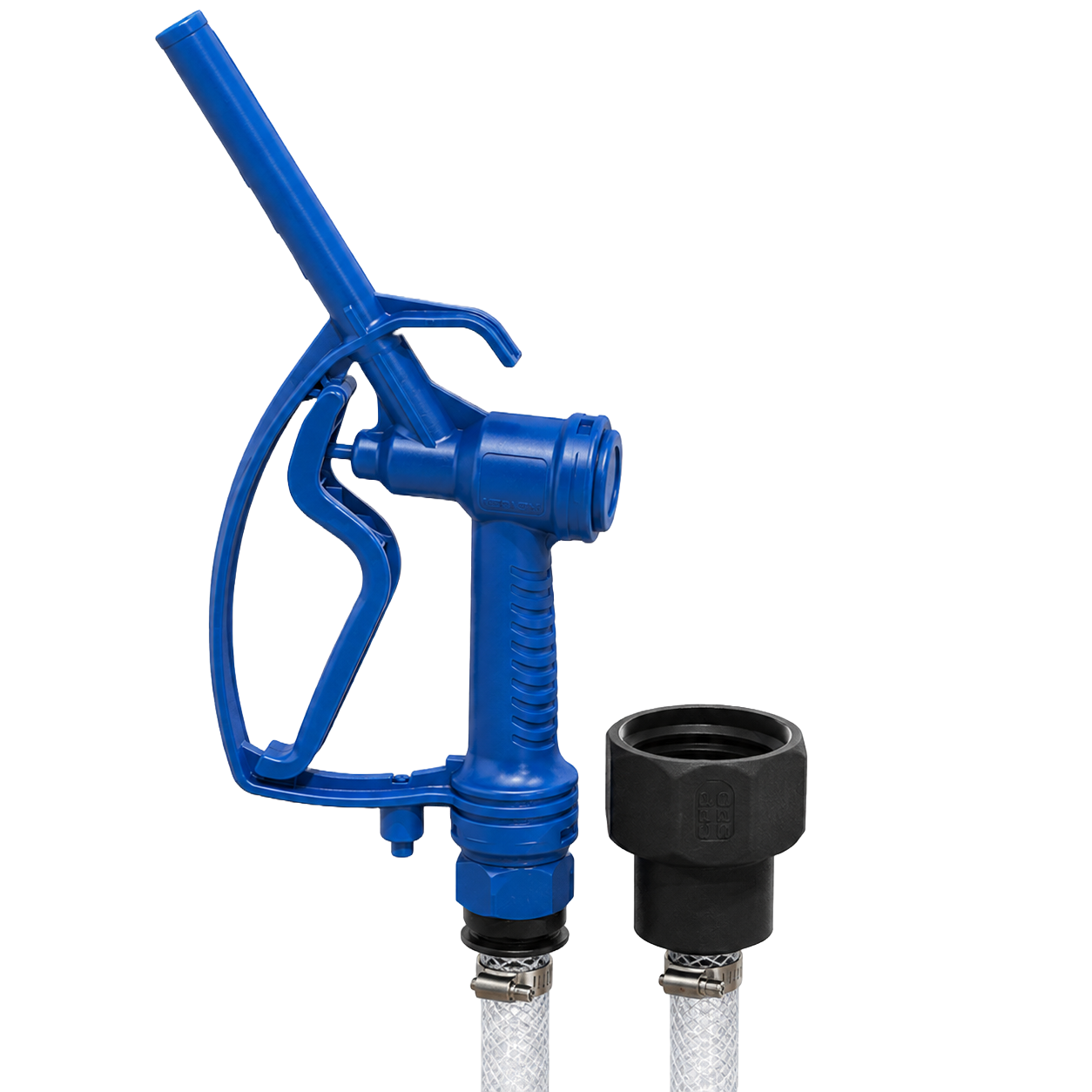

¾″ Clear Braided PVC Hose Kit – 19 mm AdBlue / DEF Trigger Nozzle × S60X6 Female IBC Connection – 3 m
Part No: HK075PV19N60UD027
Specification
- Hose size: ¾″ nominal; 19 mm ID × 24 mm OD
- Hose type: standard clear braided PVC with polyester reinforcement
- Total length: 3 m / approx. 10 ft
- Nozzle: 19 mm AdBlue / DEF trigger nozzle
- Nozzle inlet: 1″ BSPP female swivel
- Nozzle body: reinforced blue PA6
- Nozzle seal: FKM (Viton)
- Hose clips: stainless steel
- IBC connection: CPP® S60X6 female fitting with suitable hose tail
- IBC seal: PP-based elastomer seal
- Application: gravity-fed AdBlue / DEF dispensing from IBC tanks
- Maximum nozzle flow: 90 L/min / 23.8 US gal/min
- Maximum nozzle working temperature: 60 °C / 140 °F
- Quality control: incoming nozzles batch leak-tested on receipt
Product description
CPP® assembles this AdBlue / DEF hose kit using clear braided PVC hose, stainless-steel hose clips and a CPP® S60X6 female fitting with a suitable hose tail.
The blue 19 mm trigger nozzle is used in the manufacturer's standard configuration with a reinforced PA6 body and FKM (Viton) seals. Incoming nozzle batches are leak-tested on receipt.
Gravity-feed use only
This hose kit is intended only for gravity-fed discharge from IBC tanks. It is not sold as a pressure-rated hose assembly and is not intended for pumped or pressurised transfer service.
Any published pressure rating for the CPP® S60X6 female hose-tail fitting applies to that individual fitting only and must not be taken as a pressure rating for the complete hose kit.
Food-contact note
The trigger nozzle is not manufactured from food-grade materials and this hose kit is not intended for food or beverage contact applications.
Material and application guidance
Check the CPP® chemical resistance guide and Material Application Statement for suitability with your liquid and operating conditions.
For the braided PVC hose, use 20 °C as the reference temperature when screening chemical compatibility. Check the complete wetted assembly, including the hose, nozzle, seals and IBC fitting, for the intended liquid, concentration, temperature and duration of contact. The nozzle temperature and flow figures above apply to the nozzle only; they are not ratings for the complete hose kit.
