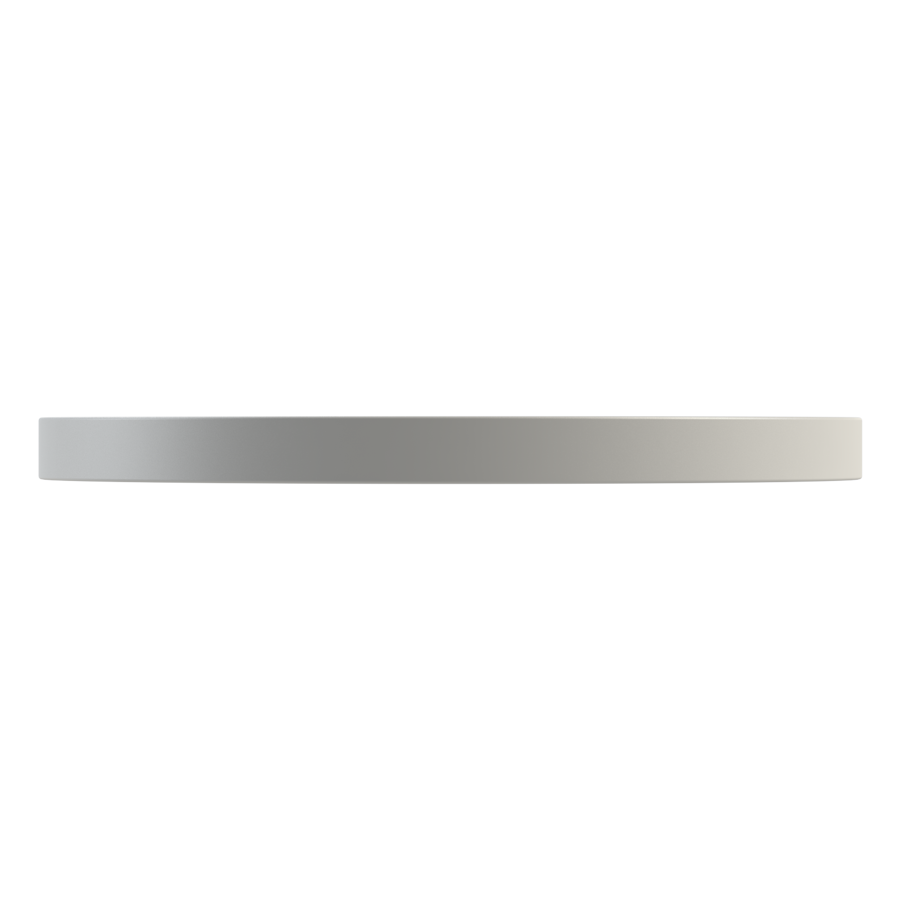

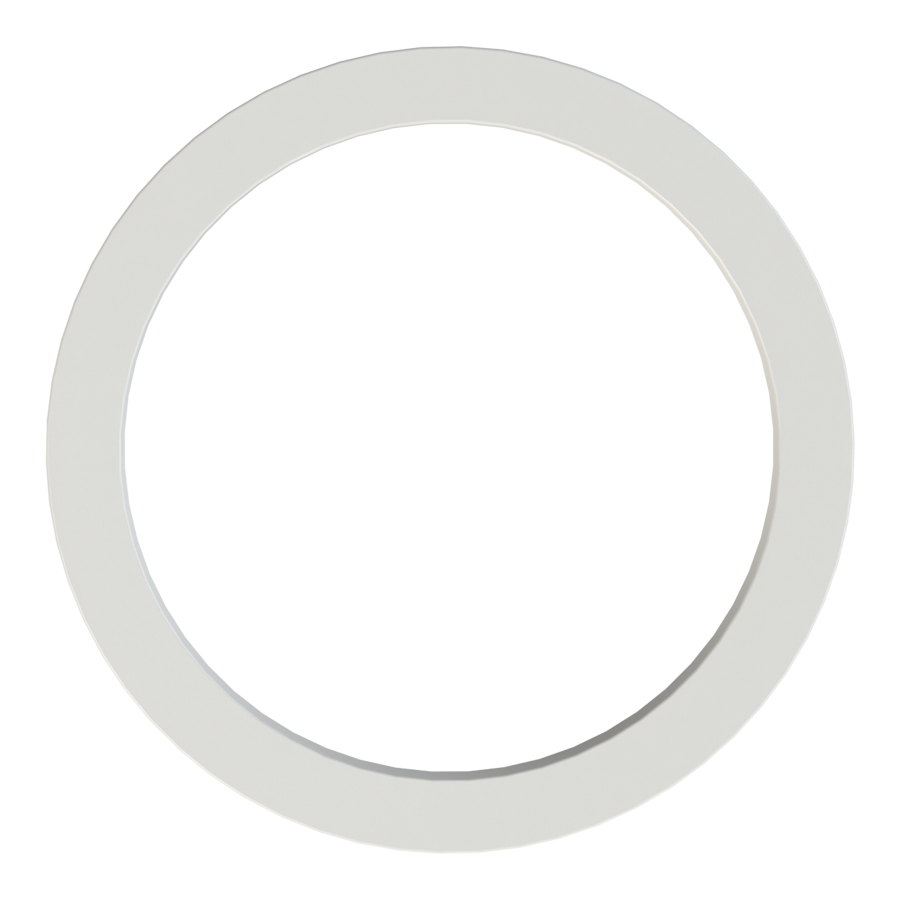

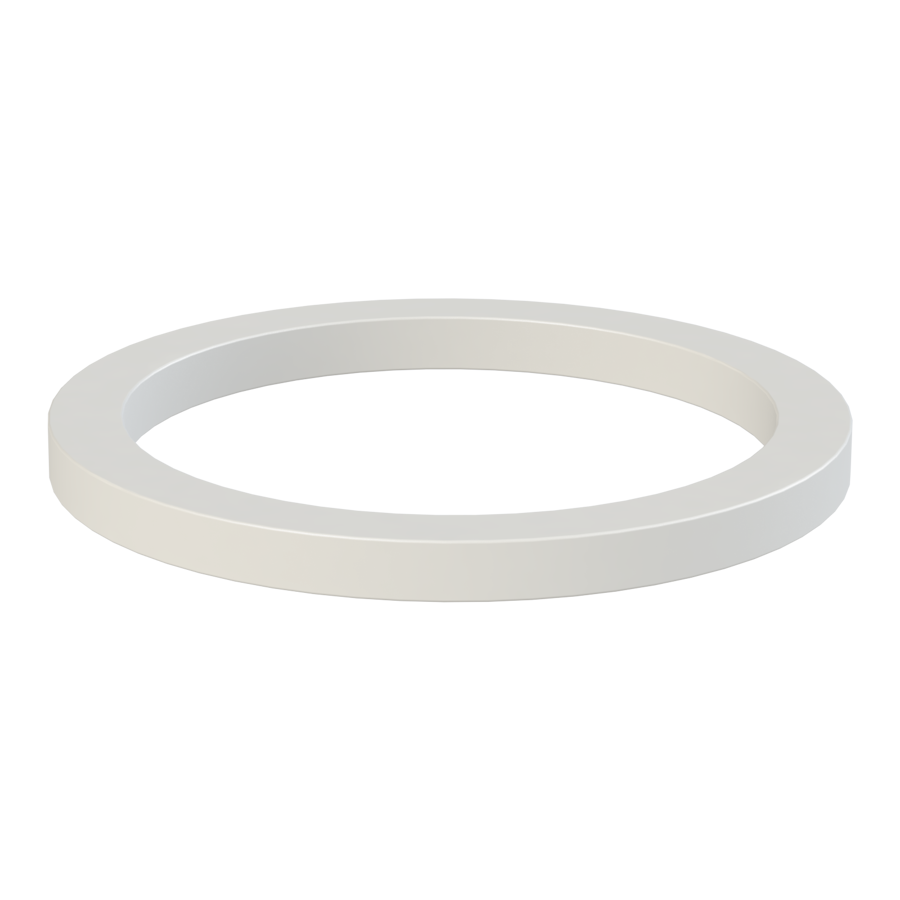

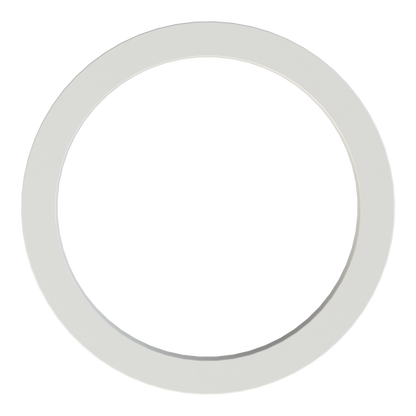

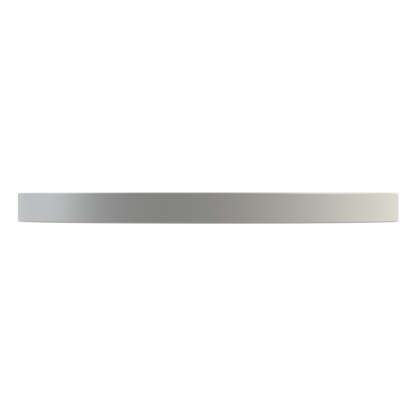

CPP® replacement flat gasket used with compatible S60X6 adaptors, including Schütz-compatible fittings where FS20TPENA is specified, and selected 2″ BSP / NPS sealing arrangements.
Dimensions and material
Outside diameter: 53.5 mm.
Inside diameter: 43.5 mm.
Thickness: 4 mm.
Profile: Flat.
Material: PP Olefin Elastomer.
Colour: Natural white.
Part number: FS20TPENA.
Compatibility
S60X6, BSP and NPS are different thread forms. Use of the same gasket in selected fittings does not make those threads interchangeable. Match the gasket dimensions, seat and sealing face to the fitting before ordering.
Installation
Close the IBC valve and release any pressure before removing the adaptor. Clean the gasket seat, fit the seal without twisting or trapping it, and check the assembled connection for leakage before use.
The gasket itself does not carry a standalone pressure rating. The operating limit is determined by the complete fitting, valve, IBC and connected equipment.
