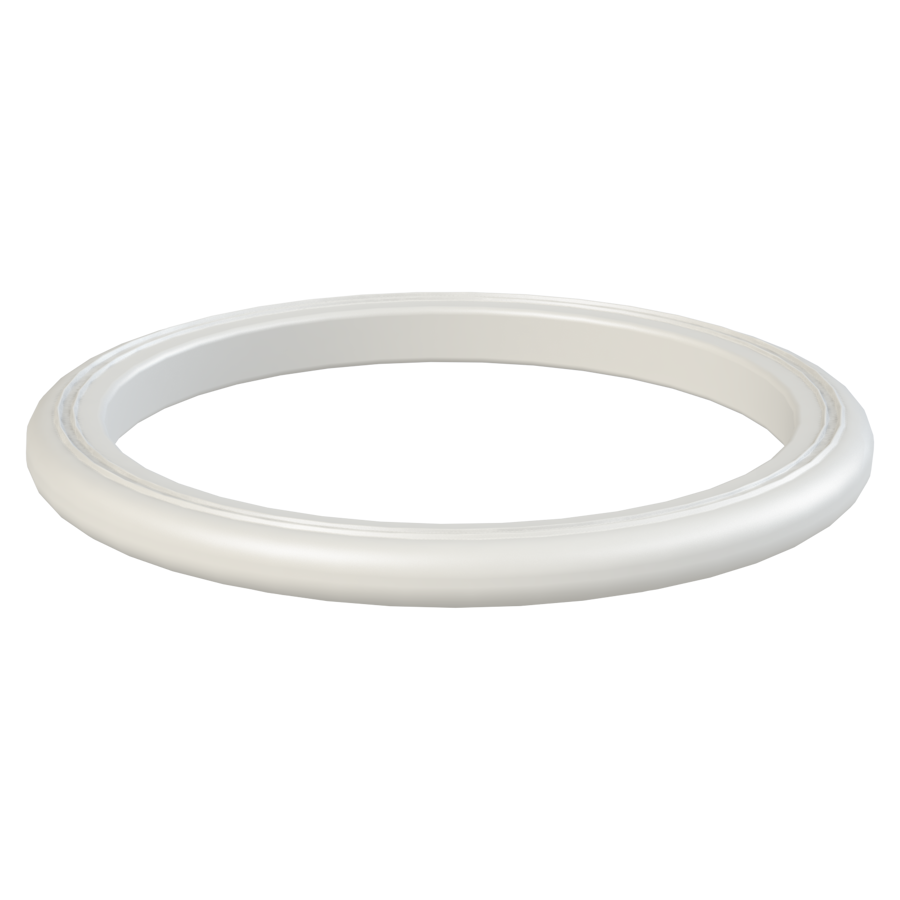

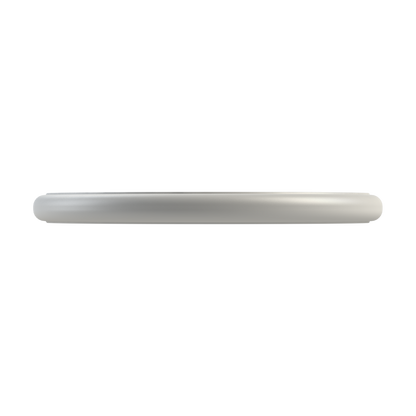

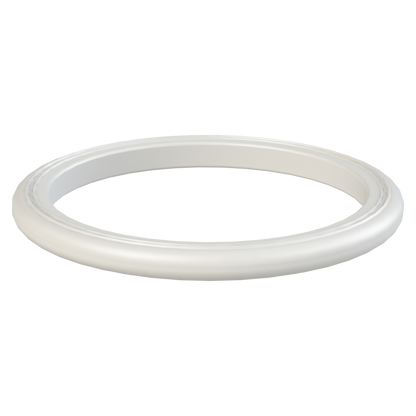

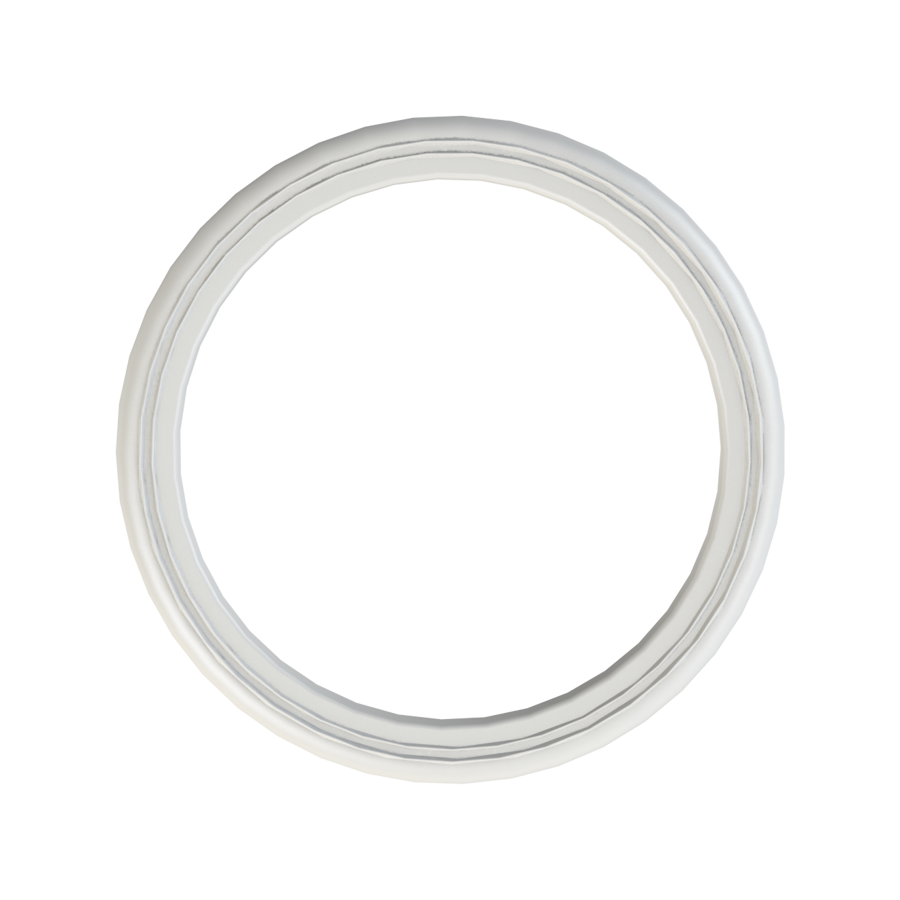

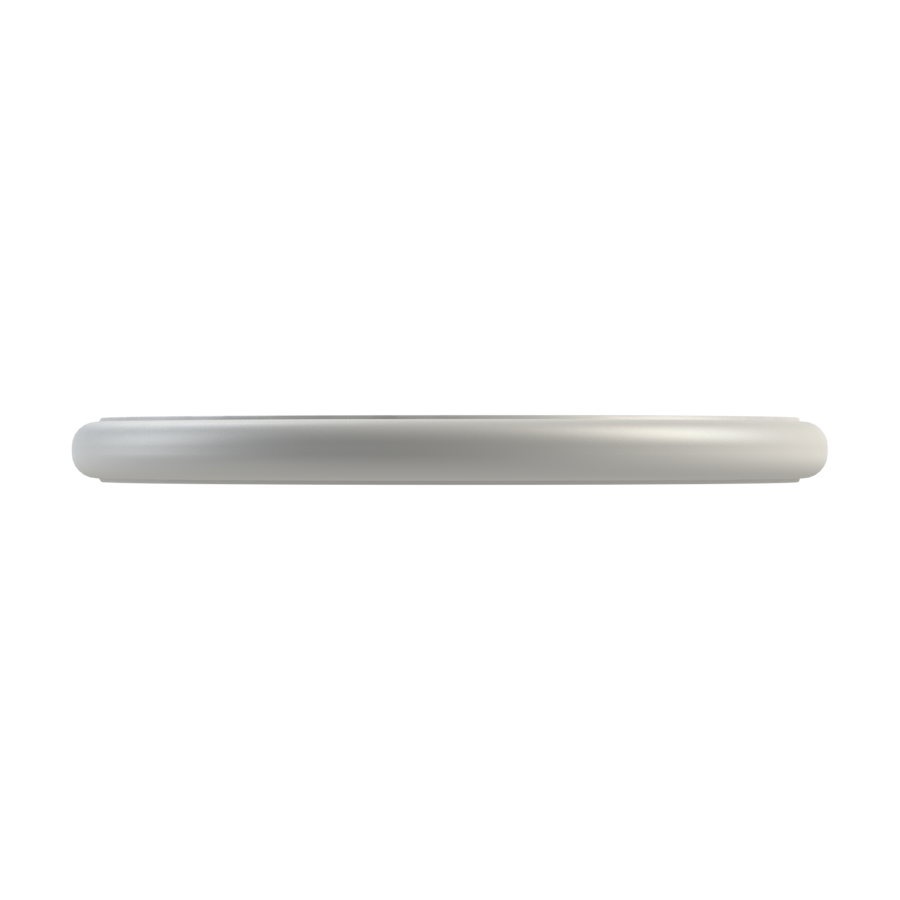

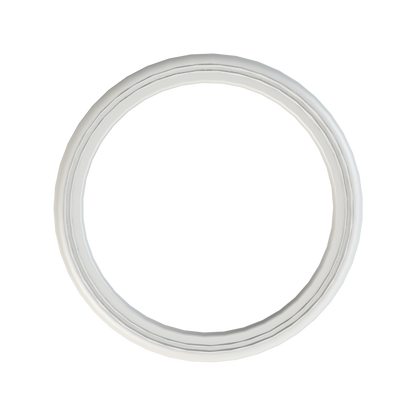

This CPP® ribbed gasket is a replacement seal for compatible S60X6 and selected 2″ BSP/NPS female fitting housings. Match the gasket dimensions and seating arrangement to the adaptor before ordering.
Material and dimensions
Material: PP Olefin Elastomer.
Colour: Natural white.
Profile: Ribbed.
Outside diameter: 53.5mm.
Inside diameter: 43.5mm.
Thickness: 4 mm.
Product code: FS202TPENA.
Compatibility and replacement
S60X6, BSP and NPS are different thread forms. This gasket’s use in selected fittings does not make those threads interchangeable. Compare the existing seal, groove and sealing face before fitting.
Close the IBC valve and release pressure before removing the adaptor. Clean the seal seat, fit the replacement without twisting or trapping it, and check the assembled connection for leaks. Operating limits depend on the complete fitting and application.
If you’re unsure about your IBC thread or connection, please contact us and we’ll help you select the correct replacement seal. A clear photo of the outlet, together with any measurements, will help us identify what you need.
Part-number orderingUse the CPP® SKU for fast repeat purchasing.
UK manufacturerSpecialist polymer fluid-transfer fittings.
Technical supportHelp with threads, materials and compatibility.
Global supplyB2B supply for industrial customers and distributors.
TECHNICAL RESOURCES
Check the connection before you order
Use the CPP technical guides for dimensions, material guidance and connection identification. If you are unsure which fitting you need, send us the application details and we can help identify it.
